- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 09251306922
- Part Number 09251306922
- Manufacturer HARTING
- Pin Count 30
- Part Category Connector
- Package Category Other

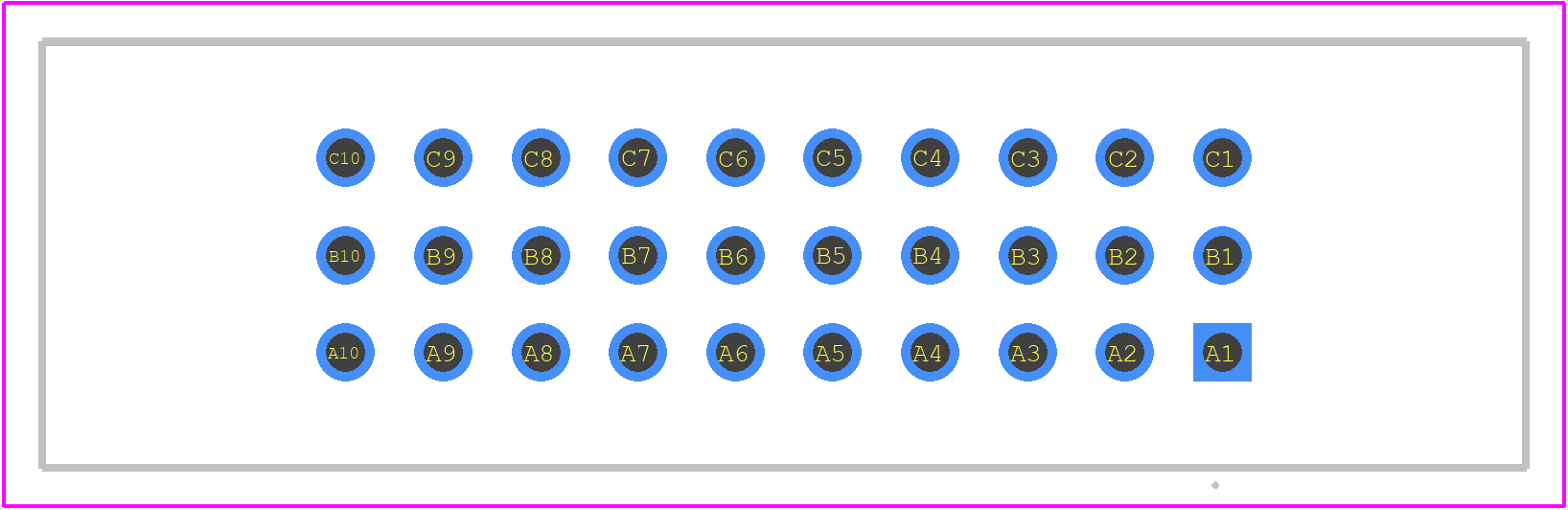

- Footprint Name Other - 09251306922-2
- Released Date Jun 28, 2021
- Last Modified Date May 24, 2023 9:08 AM UTC
- Pinout / Pin List Click Here (Member Only)
09251306922 Details
-
Manufacturer Part Number:
09251306922
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
Connector Type:
BOARD EURO CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
09251306922 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
-
Yes, the connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for high-vibration applications.
-
The 09251306922 connector is designed to be compatible with other manufacturers' mating connectors that meet the IEC 61076-2-101 standard.
-
The maximum operating temperature range for the 09251306922 connector is -40°C to 125°C, as specified in the datasheet.
-
Yes, the connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals, but it's recommended to consult the HARTING environmental testing reports for specific details.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
09251306922 Overview

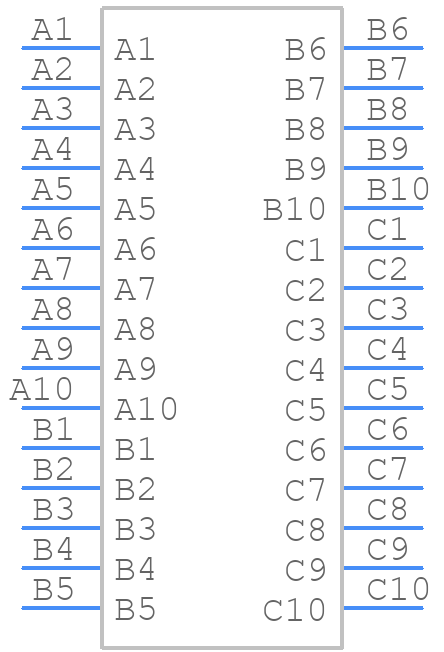

Use the download button to access the 09251306922 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09251,
or try a keyword search, such as Headers and Edge Type Connectors
