09271326577 - HARTING

Description: DIN 2Q male straight 32pin, 13mm tails, PL2

Download 09271326577 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

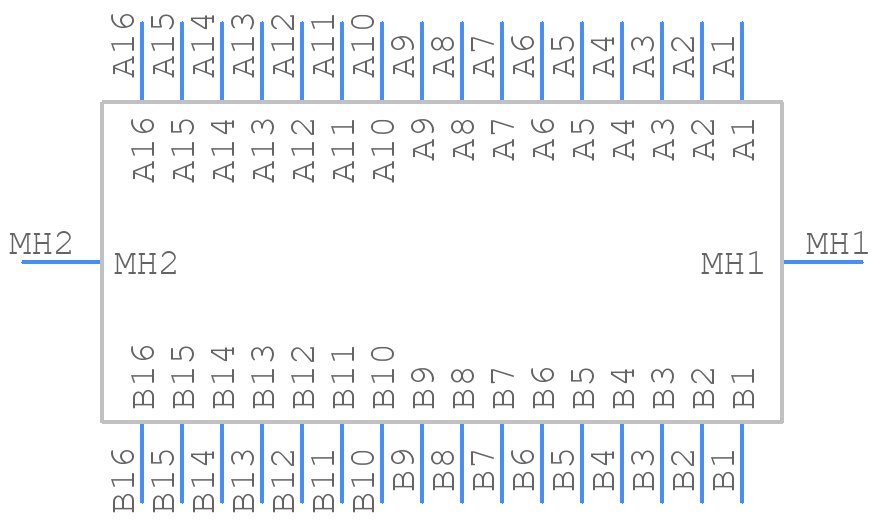

Symbol
09271326577 - HARTING - PCB symbol
click to zoom

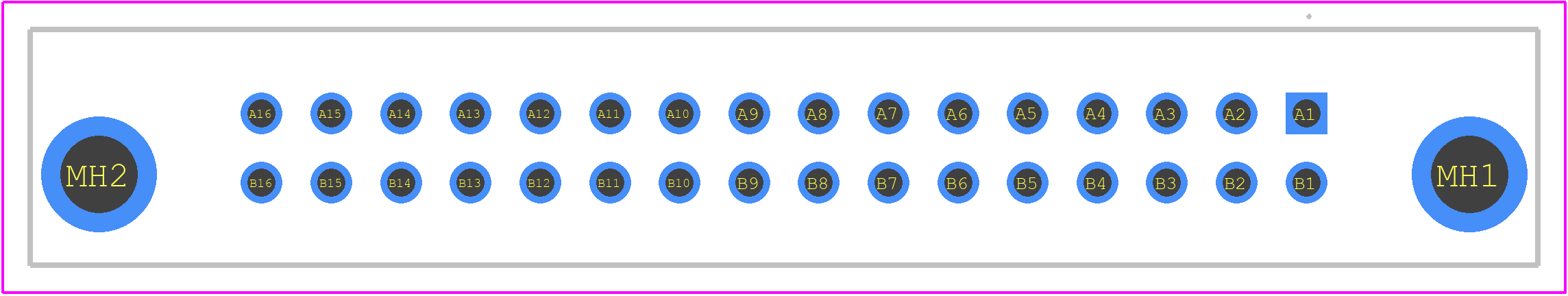

PCB Footprints
09271326577 - HARTING PCB footprint - Other - Other - 09271326577-1
click to zoom
3D Models
09271326577 - HARTING - 3D model - Other - 09271326577-1
click to zoom

09271326577 Details

  • Manufacturer Part Number:

    09271326577

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER PALLADIUM NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

09271326577 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09271326577 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 09271326577 connector has an IP67 rating, making it suitable for outdoor use in harsh environments, including exposure to water and dust.
  • The 09271326577 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09271326577 connector is designed to operate in high-humidity environments, with a tested humidity resistance of up to 95% RH (according to IEC 60068-2-30).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09271326577 Overview

Use the download button to access the 09271326577 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09271, or try a keyword search, such as Headers and Edge Type Connectors
