09281486577 - HARTING

Description: DIN 2R male straight, 48pin, 13mm tails, PL2

Download 09281486577 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09281486577 - HARTING - PCB symbol
click to zoom
PCB Footprints

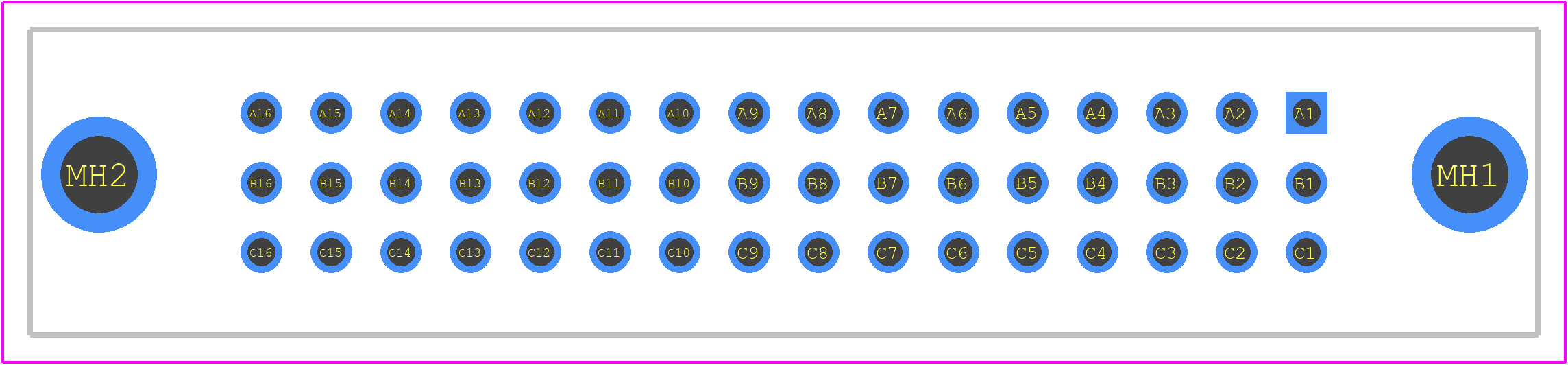

09281486577 - HARTING PCB footprint - Other - Other - 09281486577-1
click to zoom
3D Models
09281486577 - HARTING - 3D model - Other - 09281486577-1
click to zoom

09281486577 Details

  • Manufacturer Part Number:

    09281486577

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER PALLADIUM NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09281486577 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09281486577 connector is -40°C to 125°C, as per the HARTING Technology Group's specifications.
  • Yes, the 09281486577 connector is designed to withstand high-vibration environments, making it suitable for applications in industries such as aerospace, automotive, and industrial automation.
  • Yes, the 09281486577 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's application notes for specific guidance on environmental considerations.
  • The mating cycle life of the 09281486577 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • The 09281486577 connector is designed to be compatible with specific mating connectors from HARTING Technology Group. It's essential to consult the datasheet and HARTING's application notes to ensure compatibility with other connectors or components.
