09282486804 - HARTING

Description: DIN 2R female angled, 48pin, PL2, SMC/THR

Download 09282486804 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09282486804 - HARTING - PCB symbol
click to zoom
PCB Footprints

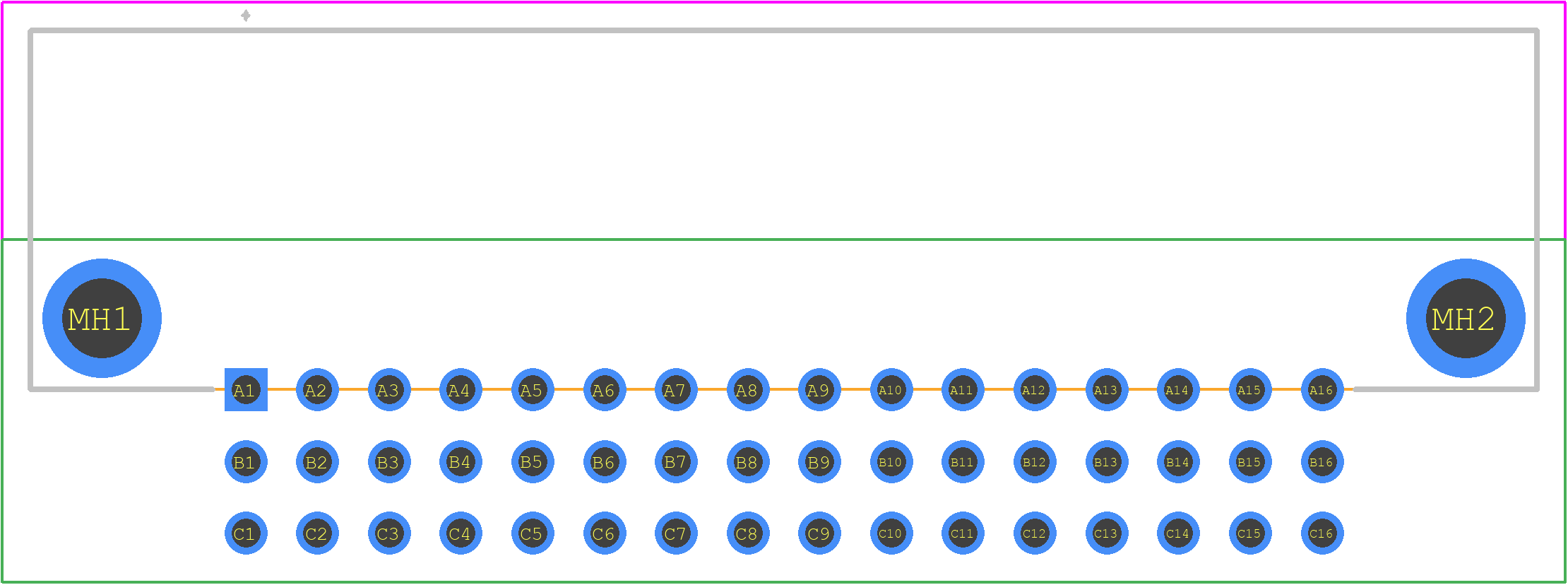

09282486804 - HARTING PCB footprint - Other - Other - 09282486804
click to zoom
3D Models
09282486804 - HARTING - 3D model - Other - 09282486804
click to zoom

09282486804 Details

  • Manufacturer Part Number:

    09282486804

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09282486804 Overview

Use the download button to access the 09282486804 schematic symbol, PCB footprint, and 3D model.
