According to HARTING's application notes, the recommended torque value for screwing the 09294306804 connector onto the PCB is 0.5 Nm to 1.5 Nm. However, it's essential to consult the specific PCB design and layout to ensure the correct torque value.
Yes, the 09294306804 connector is designed to withstand vibrations and shocks. HARTING's connectors are tested according to IEC 61373 Cat 2, which ensures they can operate reliably in environments with high vibrations. However, it's crucial to consult the specific vibration profile and amplitude to ensure the connector meets the application requirements.
Yes, the 09294306804 connector is designed for automated assembly processes. HARTING's connectors feature a pick-and-place compatible design, and the company provides guidance on automated assembly processes. It's recommended to consult with HARTING's technical support team for specific guidance on automated assembly.
The 09294306804 connector is rated for operation in temperatures ranging from -40°C to +125°C. However, it's essential to consider the specific application and environmental conditions to ensure the connector operates within its specified temperature range.
The 09294306804 connector is designed to operate in harsh environments, including those with high humidity and exposure to chemicals. HARTING's connectors are tested according to IEC 60529 and IEC 61076-2-111, which ensures they can operate reliably in challenging environmental conditions. However, it's crucial to consult the specific environmental requirements to ensure the connector meets the application demands.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09294306804 Overview

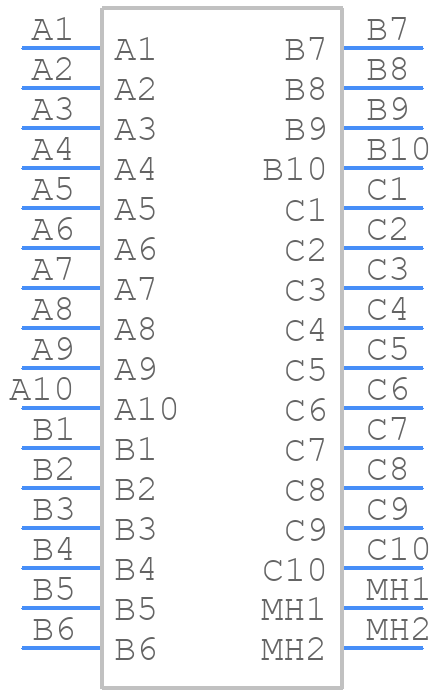

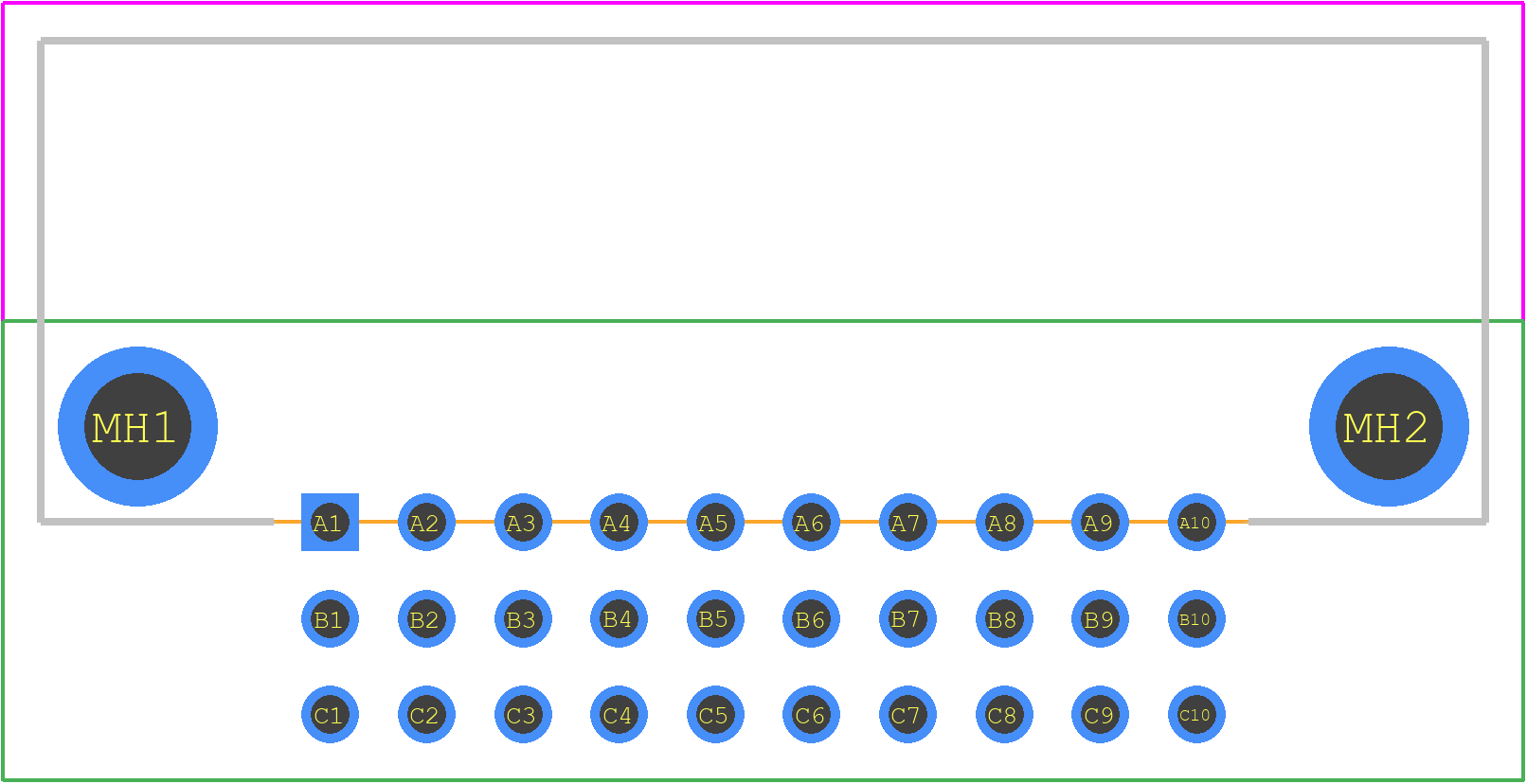

Use the download button to access the 09294306804 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09294,
or try a keyword search, such as Headers and Edge Type Connectors
