094929 - Bourns

Description: Flyback Converters For SMPS Transformer 4200V Isolation 132kHz Through Hole

Download 094929 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

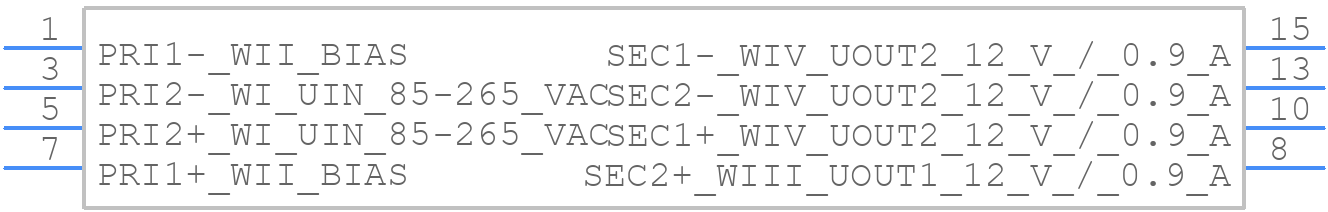

094929 - Bourns - PCB symbol
click to zoom
PCB Footprints

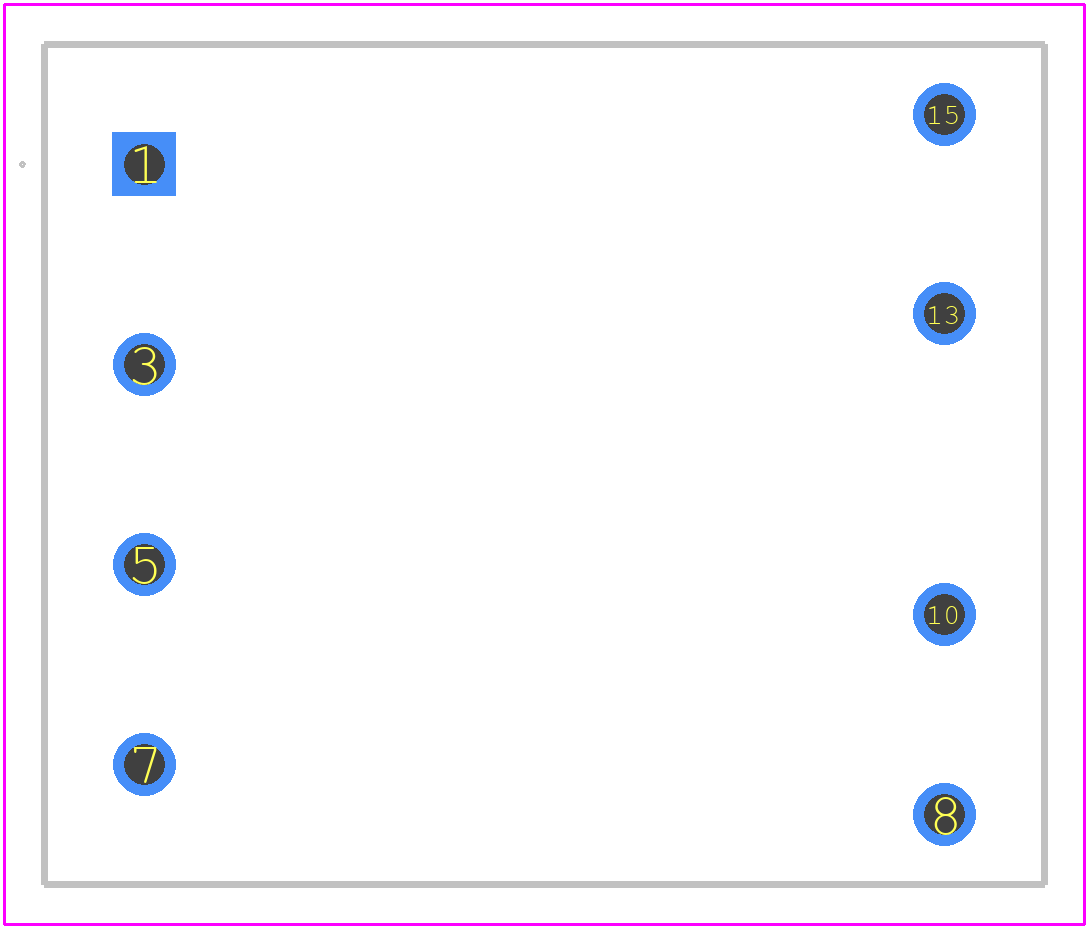

094929 - Bourns PCB footprint - Other - Other - 094929-2
click to zoom
3D Models
094929 - Bourns - 3D model - Other - 094929-2
click to zoom

094929 Details

  • Manufacturer Part Number:

    094929

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.78

  • Approvals:

    VDE

  • Height:

    15 mm

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Packing Method:

    TRAY

  • Power Rating:

    22 W

  • Primary Inductance:

    940 µH

  • Surface Mount:

    NO

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    21 mm

094929 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a ground plane underneath the device to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • The 094929 has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features that limit the output voltage and current to prevent damage to the device and downstream components.
  • The 094929 is rated for operation from -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications.
  • Yes, the 094929 is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The typical response time for the 094929's overcurrent protection feature is around 1-2 microseconds, ensuring fast and effective protection against overcurrent conditions.
