09551296812741 - HARTING

Description: D-Sub SMT 9pin straight male, 4-40UNC threading, PL2 (reel of 140 pieces)

Download 09551296812741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

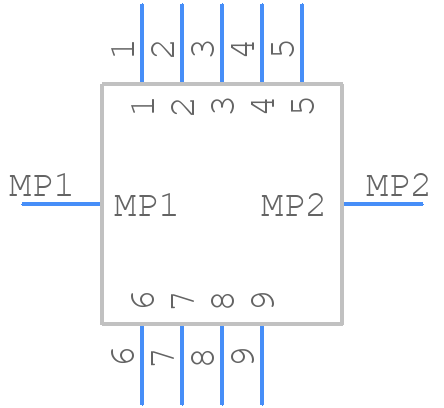

09551296812741 - HARTING - PCB symbol
click to zoom
PCB Footprints

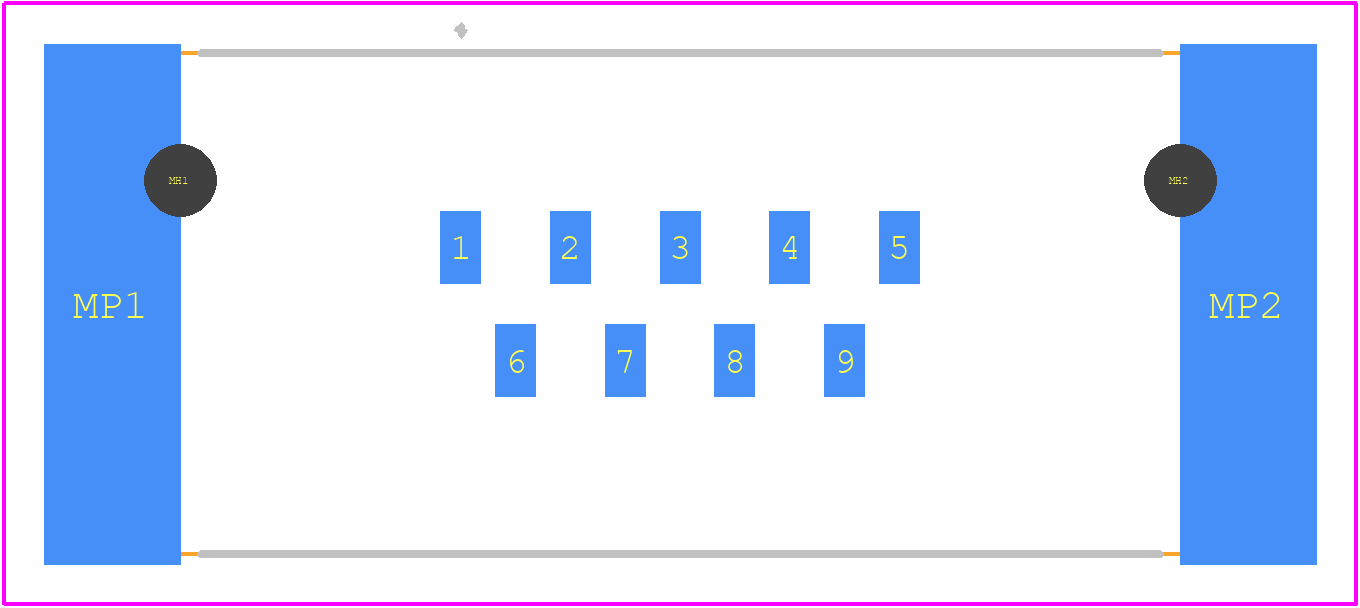

09551296812741 - HARTING PCB footprint - Other - Other - 09551296812741-2
click to zoom
3D Models
09551296812741 - HARTING - 3D model - Other - 09551296812741-2
click to zoom

09551296812741 Details

  • Manufacturer Part Number:

    09551296812741

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.25 inch

  • Body Length:

    1.225 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40 UNC

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • Shell Size:

    1/E

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

09551296812741 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09551296812741 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09551296812741 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 1 Class B.
  • Yes, the 09551296812741 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • Yes, the 09551296812741 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The maximum current rating of the 09551296812741 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09551296812741 Overview

Use the download button to access the 09551296812741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09551, or try a keyword search, such as D Type Connectors
