09551296821741 - HARTING

Description: D-Sub SMT 9pin straight male, M3 non-removable jack screw, PL2 (reel of 140 pieces)

Download 09551296821741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

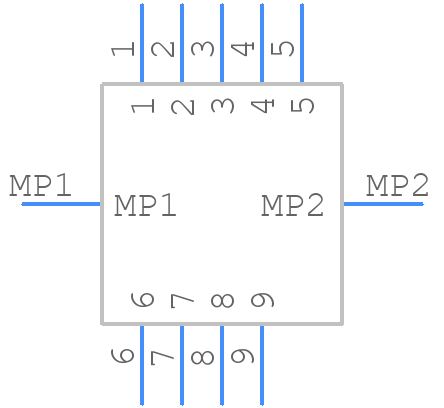

09551296821741 - HARTING - PCB symbol
click to zoom
PCB Footprints

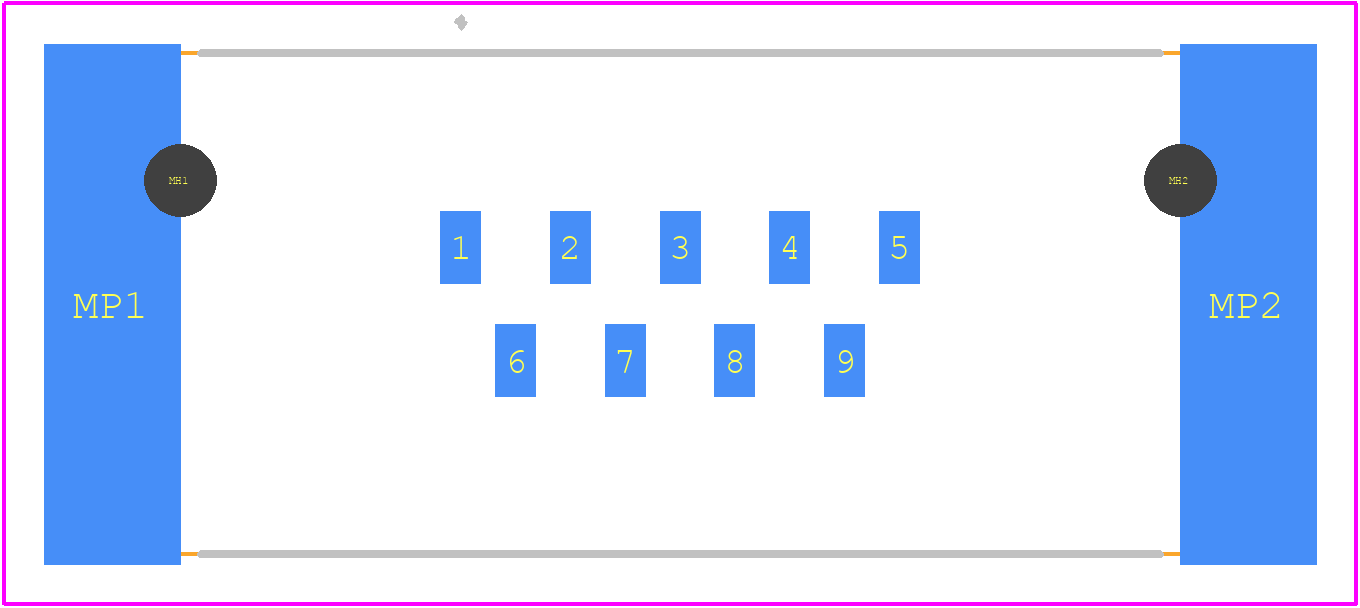

09551296821741 - HARTING PCB footprint - Other - Other - 09551296821741
click to zoom
3D Models
09551296821741 - HARTING - 3D model - Other - 09551296821741
click to zoom

09551296821741 Details

  • Manufacturer Part Number:

    09551296821741

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Option:

    GENERAL PURPOSE

09551296821741 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09551296821741 connector is -40°C to 125°C, according to HARTING's documentation.
  • Yes, the 09551296821741 connector is designed for outdoor use and meets the IP67 rating, which means it is protected against dust and water ingress.
  • The mating cycle of the 09551296821741 connector is 500 cycles, according to HARTING's specifications.
  • Yes, the 09551296821741 connector is designed to withstand high-vibration environments, with a vibration resistance of 10g (sinusoidal) and 20g (random) according to IEC 61373 Cat. 2.
  • Yes, the 09551296821741 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors and accessories.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09551296821741 Overview

Use the download button to access the 09551296821741 schematic symbol, PCB footprint, and 3D model.
