The recommended torque for screwing the 09551297822741 connector is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact HARTING's technical support for specific torque recommendations.
Yes, the 09551297822741 connector is designed to withstand high-vibration environments. HARTING's connectors are built with robust materials and have undergone rigorous testing to ensure reliable performance in demanding applications. However, it's crucial to consult the datasheet and manufacturer's guidelines for specific vibration ratings and recommendations.
The 09551297822741 connector is designed to operate in a wide range of environmental conditions. It can withstand temperatures from -40°C to 125°C and humidity up to 95%. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental ratings and recommendations for your application.
The 09551297822741 connector is designed to be compatible with a variety of cable and wire types. However, it's crucial to consult the datasheet and manufacturer's guidelines to ensure compatibility with your specific cable or wire type. You may also need to consult with HARTING's technical support or a qualified engineer to determine the best connector-cable combination for your application.
The lead time for delivery of the 09551297822741 connector can vary depending on the quantity, location, and availability. Typically, HARTING offers a standard lead time of 2-4 weeks for most connectors. However, it's best to consult with HARTING's sales team or authorized distributors for the most up-to-date and accurate lead time information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09551297822741 Overview

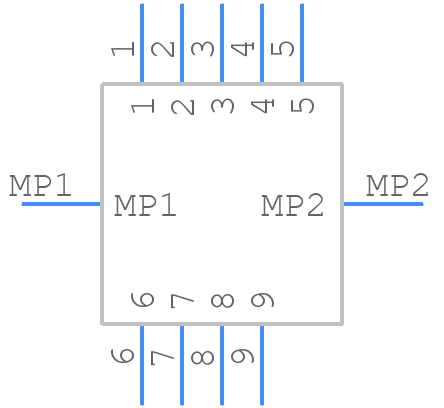

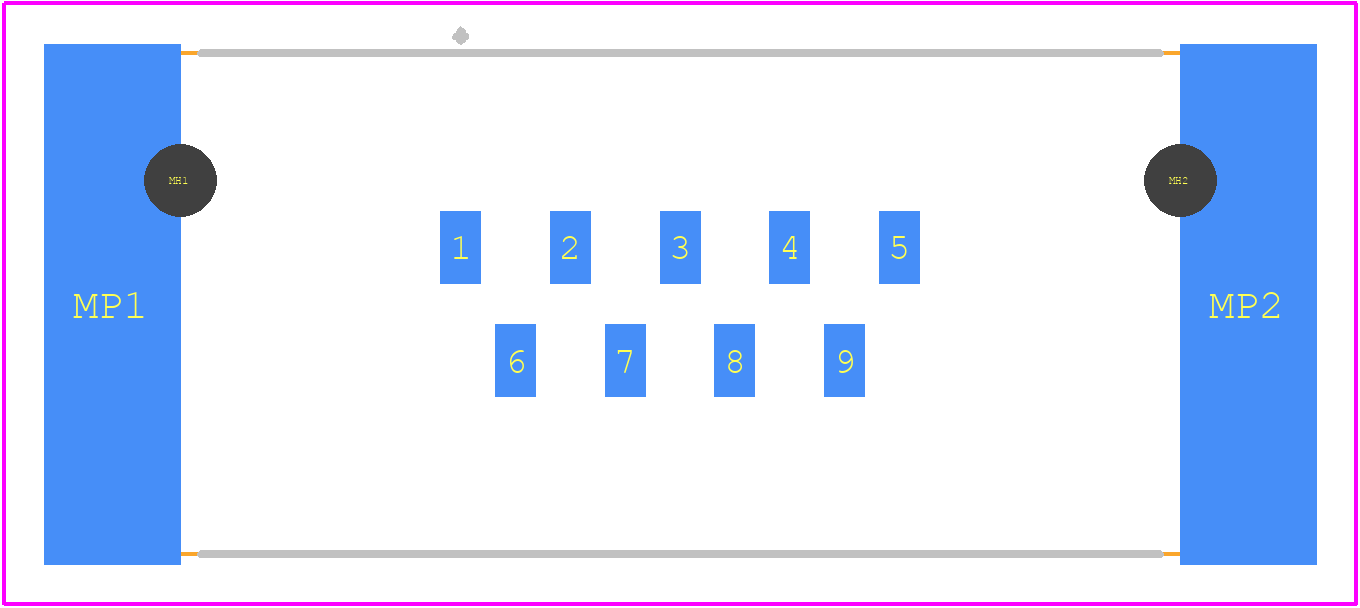

Use the download button to access the 09551297822741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09551,
or try a keyword search, such as D Type Connectors
