09551566612741 - HARTING

Description: D-Sub SMT 9pin angled female, w/ board locks, 4-40UNC thread, PL2

Download 09551566612741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09551566612741 - HARTING - PCB symbol
click to zoom
PCB Footprints

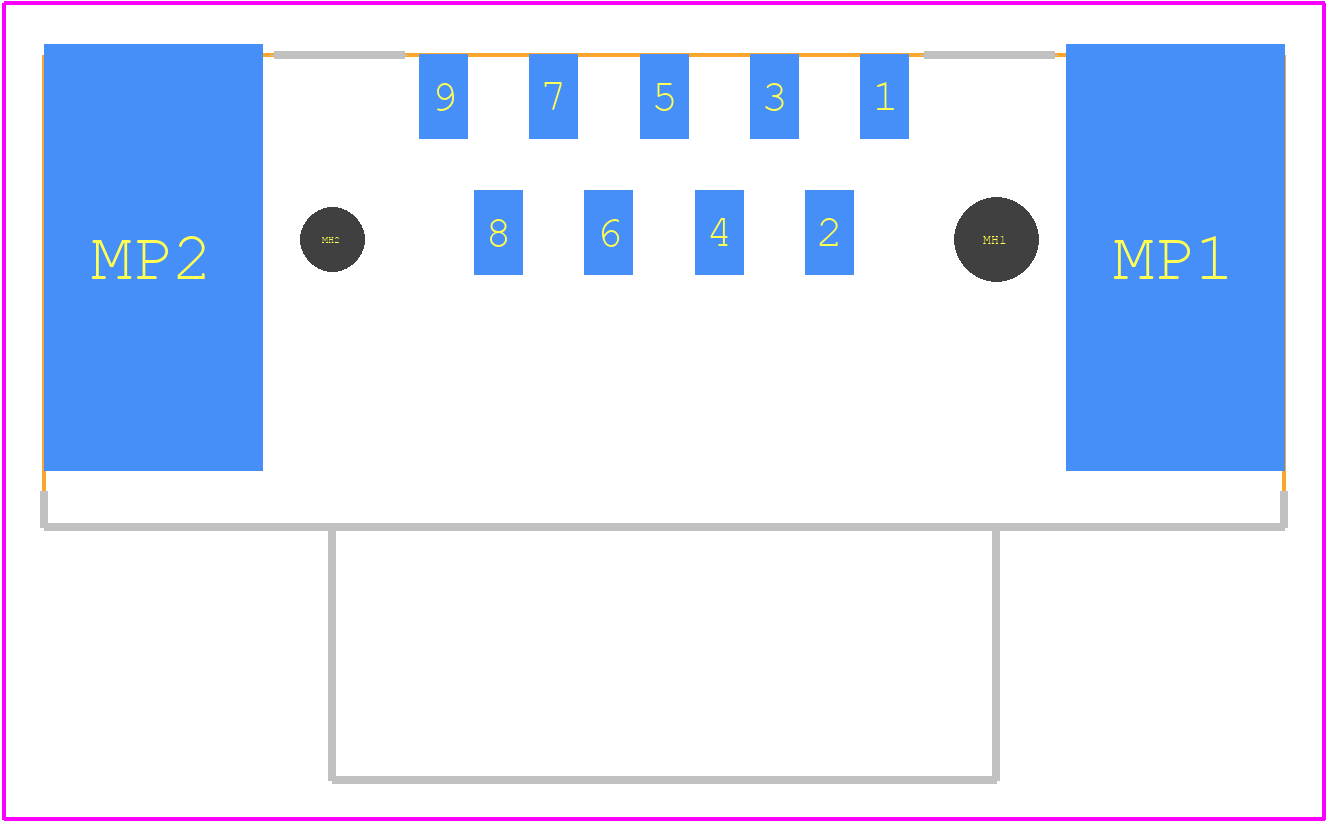

09551566612741 - HARTING PCB footprint - Other - Other - 09551566612741-4
click to zoom
3D Models
09551566612741 - HARTING - 3D model - Other - 09551566612741-4
click to zoom

09551566612741 Details

  • Manufacturer Part Number:

    09551566612741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09551566612741 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09551566612741 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09551566612741 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 2.
  • Yes, the 09551566612741 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • Yes, the 09551566612741 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexible and modular system design.
  • The maximum current rating of the 09551566612741 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09551566612741 Overview

Use the download button to access the 09551566612741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09551, or try a keyword search, such as D Type Connectors
