09551566622741 - HARTING

Description: D-Sub SMT 9pin angled female, w/ board locks, non-removable 4-40UNC screw lock, PL2

Download 09551566622741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09551566622741 - HARTING - PCB symbol
click to zoom
PCB Footprints

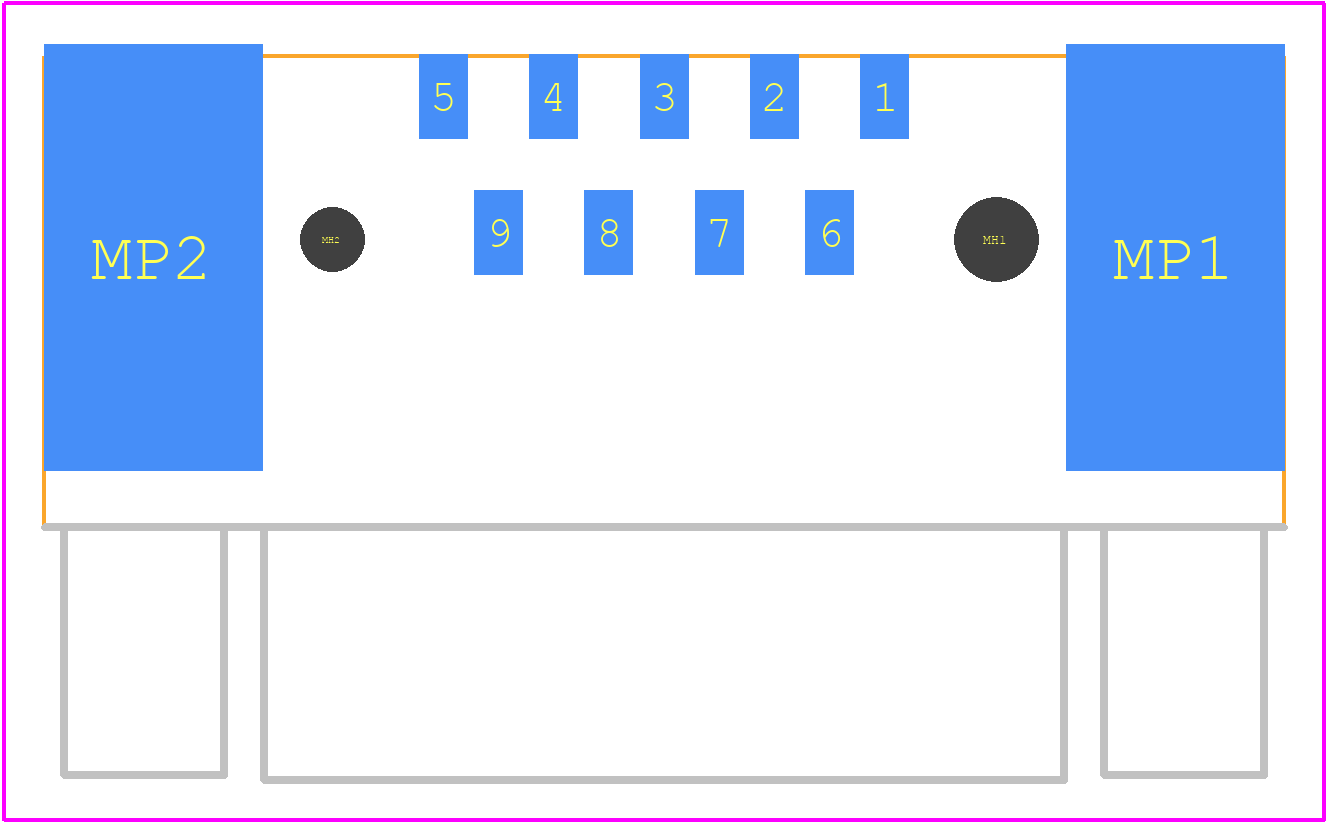

09551566622741 - HARTING PCB footprint - Other - Other - 09551566622741-4
click to zoom
3D Models
09551566622741 - HARTING - 3D model - Other - 09551566622741-4
click to zoom

09551566622741 Details

  • Manufacturer Part Number:

    09551566622741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • JESD-609 Code:

    e4

09551566622741 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09551566622741 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09551566622741 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 09551566622741 connector is designed for use in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of IP67 (dust-tight and protected against immersion in water up to 1m).
  • The 09551566622741 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09551566622741 connector is designed to be compatible with other HARTING connectors in the same series, but compatibility with third-party connectors should be verified on a case-by-case basis.
