The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
Yes, the 09551663815741 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured and mounted to prevent damage or disconnection. HARTING recommends following their guidelines for vibration-resistant connections.
The 09551663815741 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to ensure that the connector is properly sealed and protected from extreme temperatures, moisture, and contaminants.
The 09551663815741 connector is designed to be compatible with HARTING's mating connectors. While it may be possible to use it with other manufacturers' connectors, compatibility and performance cannot be guaranteed. It's recommended to use HARTING's mating connectors for optimal performance and reliability.
The 09551663815741 connector has an operating temperature range of -40°C to +125°C. However, the maximum operating temperature may vary depending on the specific application and environmental conditions. It's essential to consult the HARTING datasheet and application notes for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09551663815741 Overview

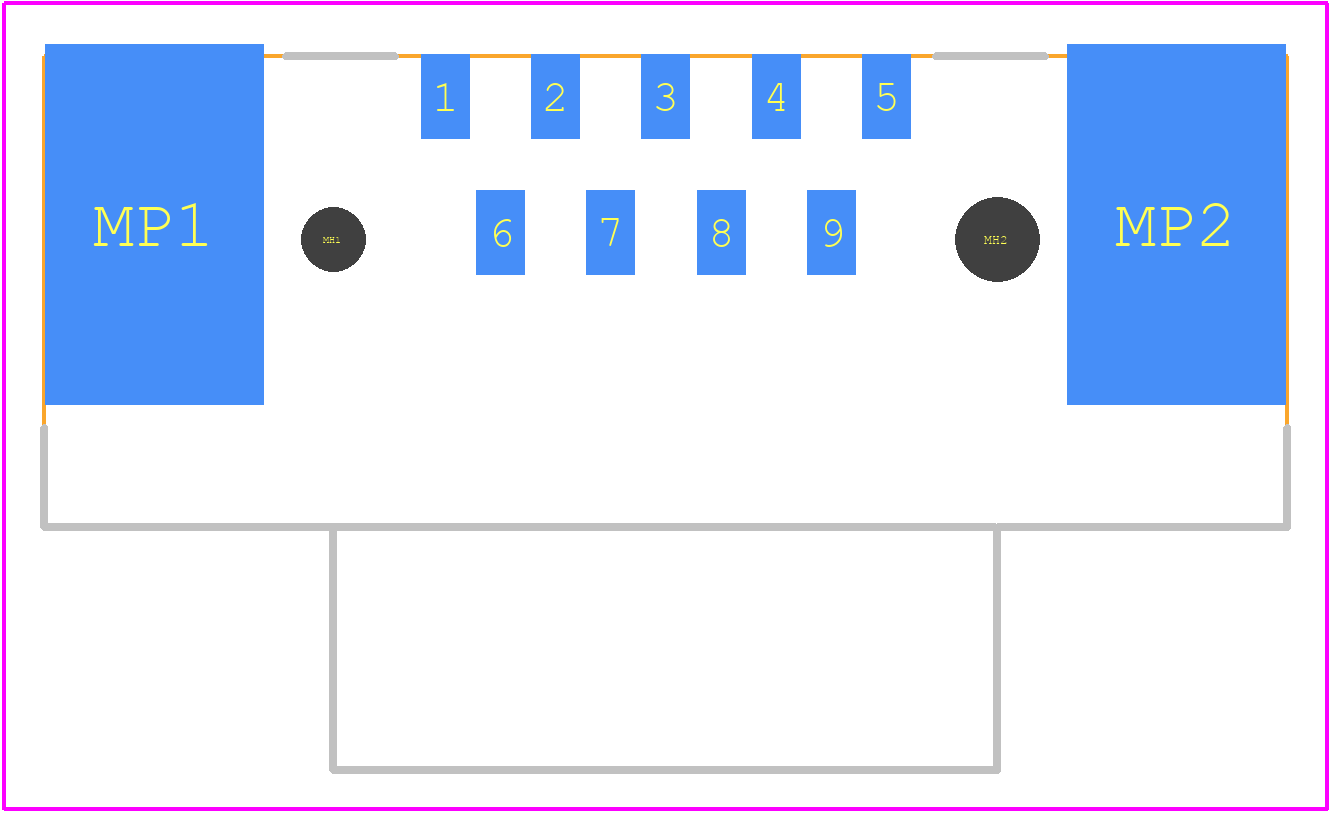

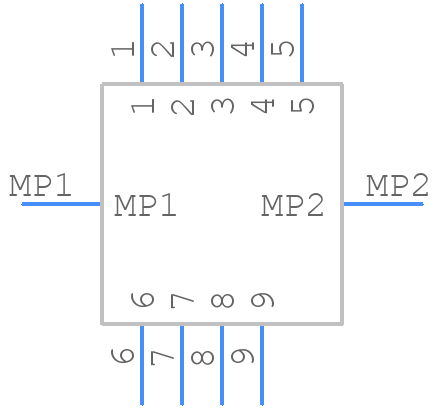

Use the download button to access the 09551663815741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09551,
or try a keyword search, such as D Type Connectors
