09551666820741 - HARTING

Description: D-Sub SMT 9pin angled low-profile male, w/ board locks, non-removable 4-40UNC screw lock, PL2

Download 09551666820741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

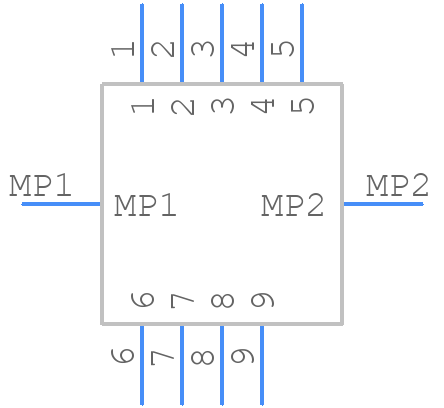

09551666820741 - HARTING - PCB symbol
click to zoom
PCB Footprints

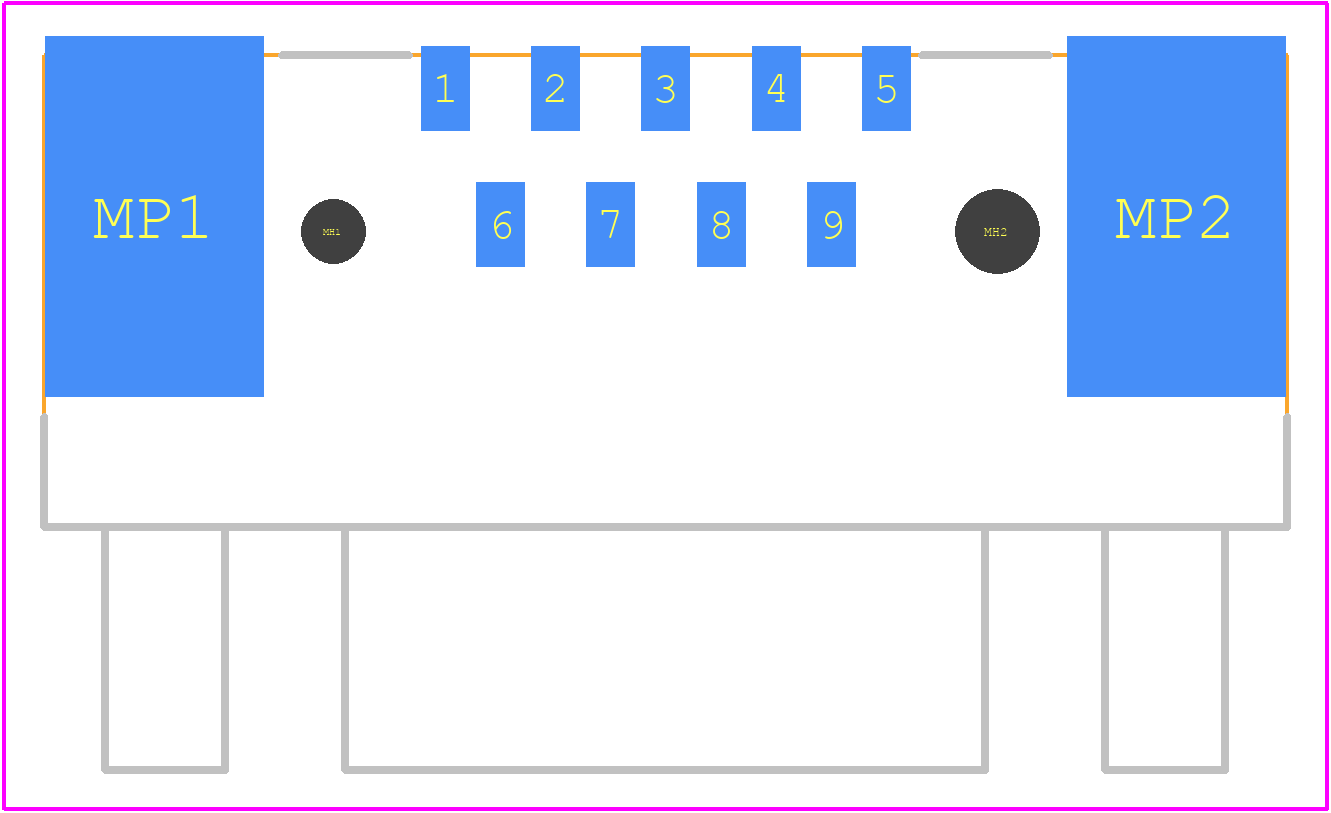

09551666820741 - HARTING PCB footprint - Other - Other - 09551666820741-3
click to zoom
3D Models
09551666820741 - HARTING - 3D model - Other - 09551666820741-3
click to zoom

09551666820741 Details

  • Manufacturer Part Number:

    09551666820741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

09551666820741 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09551666820741 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • The maximum operating temperature range for the 09551666820741 connector is -40°C to +125°C, making it suitable for use in a wide range of industrial and commercial applications.
  • Yes, the 09551666820741 connector is designed to be compatible with other HARTING products, including cables, adapters, and connectors, ensuring seamless integration and connectivity.
  • The 09551666820741 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09551666820741 Overview

Use the download button to access the 09551666820741 schematic symbol, PCB footprint, and 3D model.
