09551666821741 - HARTING

Description: D-Sub SMT 9pin angled male, w/ board locks, non-removable M3 screw lock, PL2

Download 09551666821741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

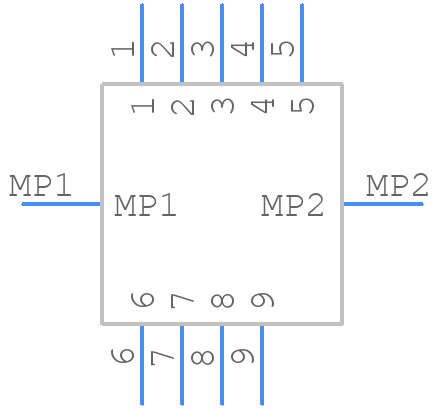

09551666821741 - HARTING - PCB symbol
click to zoom
PCB Footprints

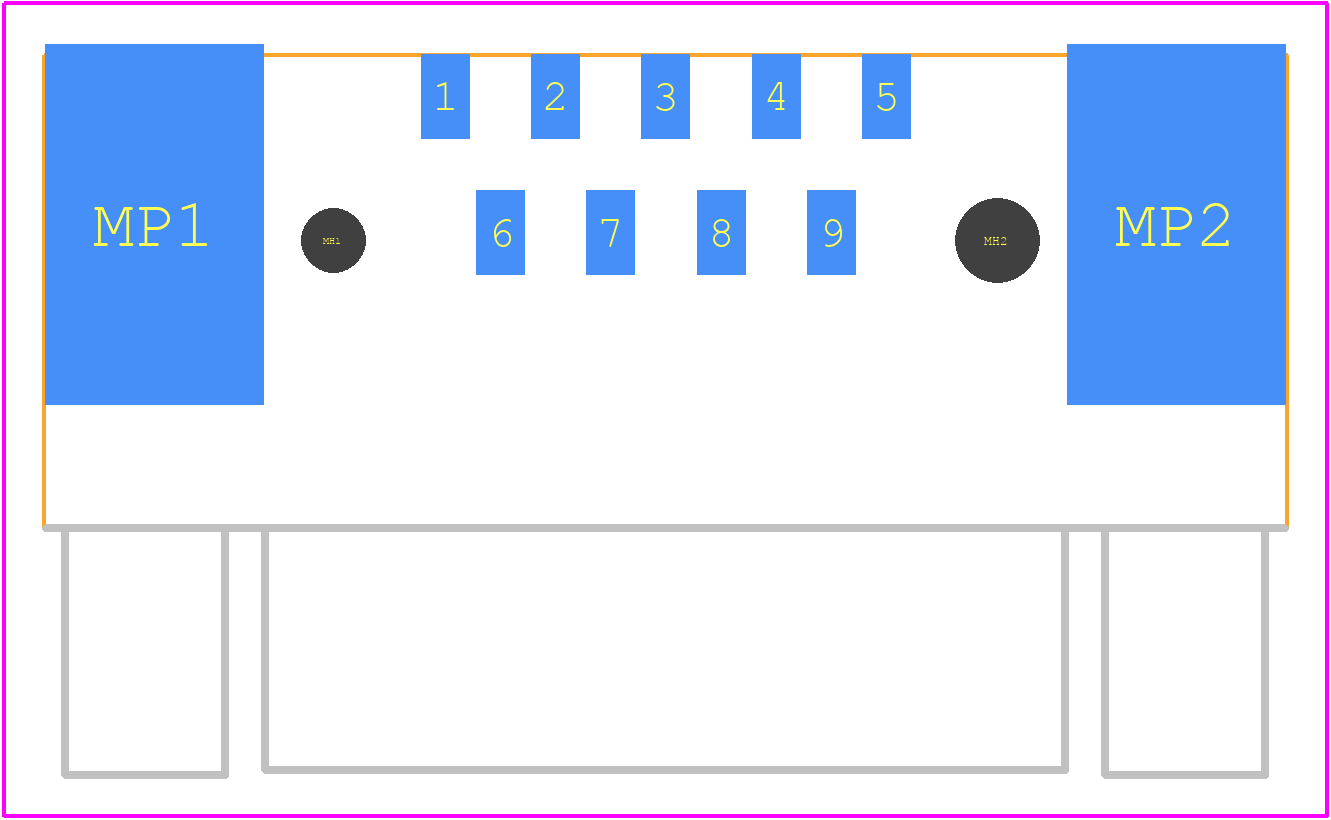

09551666821741 - HARTING PCB footprint - Other - Other - 09551666821741-2
click to zoom
3D Models
09551666821741 - HARTING - 3D model - Other - 09551666821741-2
click to zoom

09551666821741 Details

  • Manufacturer Part Number:

    09551666821741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR
