Part Image

09551667812741 - HARTING

Description: D-Sub SMT 9pin angled male, w/ board locks, 4-40UNC thread, PL3

Download 09551667812741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

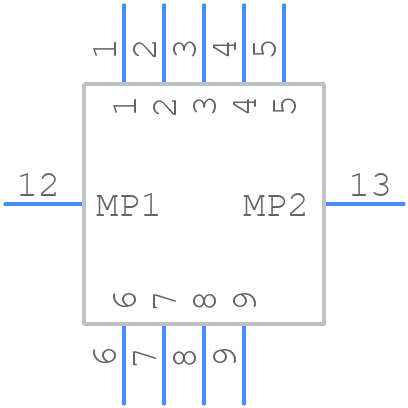

09551667812741 - HARTING - PCB symbol
click to zoom
PCB Footprints

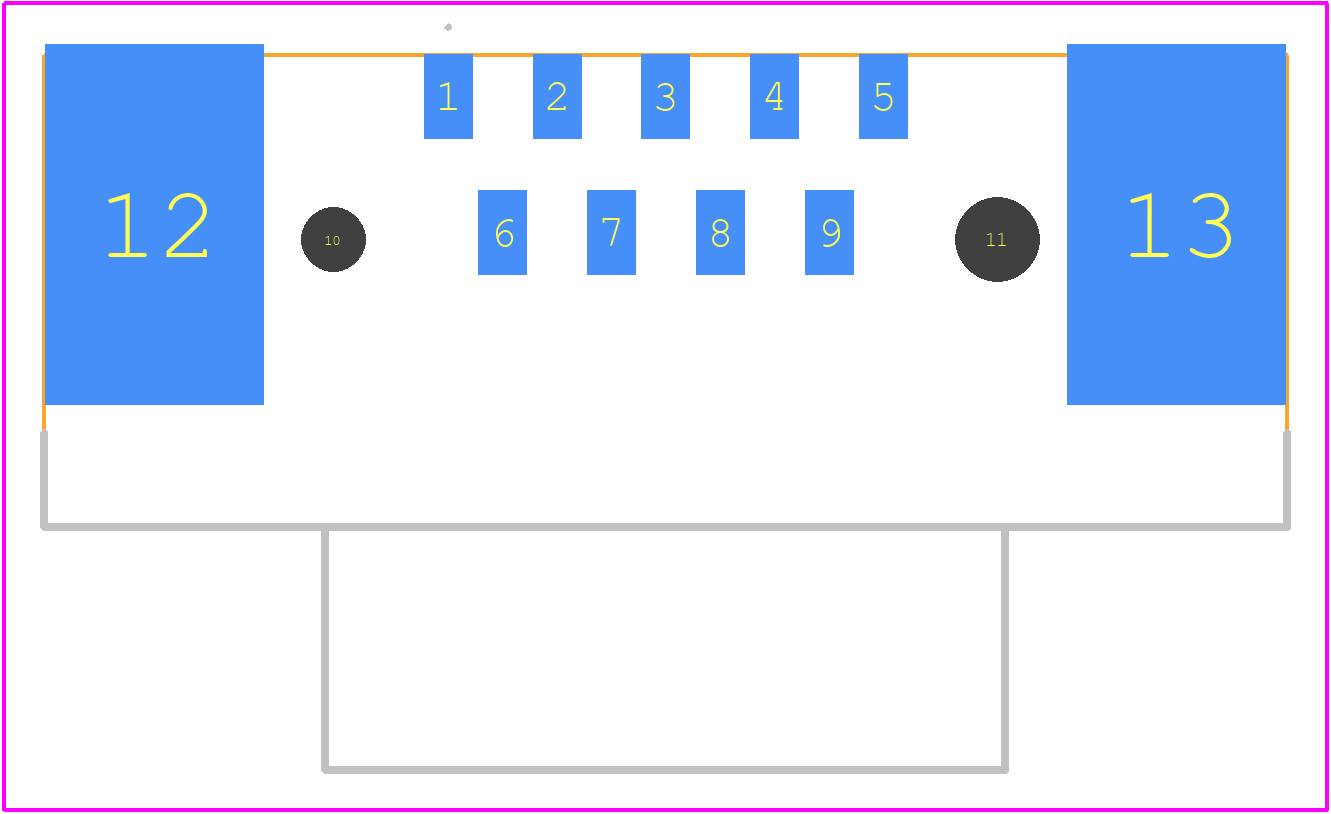

09551667812741 - HARTING PCB footprint - Other - Other - 09551667812741-4
click to zoom
3D Models
09551667812741 - HARTING - 3D model - Other - 09551667812741-4
click to zoom

09551667812741 Details

  • Manufacturer Part Number:

    09551667812741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09551667812741 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09551667812741 connector is -40°C to 125°C, according to HARTING's documentation.
  • Yes, the 09551667812741 connector is designed for outdoor use and meets the IP67 rating, which means it is protected against dust and water ingress.
  • The mating cycle of the 09551667812741 connector is 500 cycles, according to HARTING's specifications.
  • Yes, the 09551667812741 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial automation, transportation, and more.
  • Yes, the 09551667812741 connector is part of HARTING's Han-Modular series and is compatible with other Han-Modular products, allowing for flexible and modular system design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09551667812741 Overview

Use the download button to access the 09551667812741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09551, or try a keyword search, such as D Type Connectors
