09551697811741 - HARTING

Description: D-Sub Standard Connectors 9p STR MA PL3 pin M3 nut

Download 09551697811741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

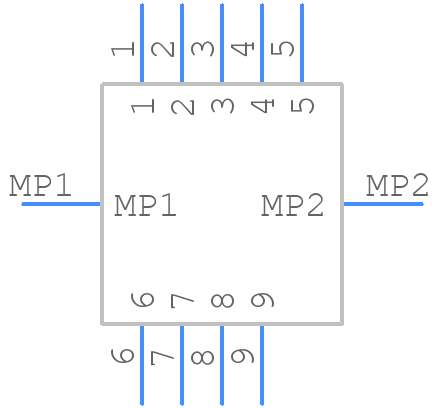

09551697811741 - HARTING - PCB symbol
click to zoom
PCB Footprints

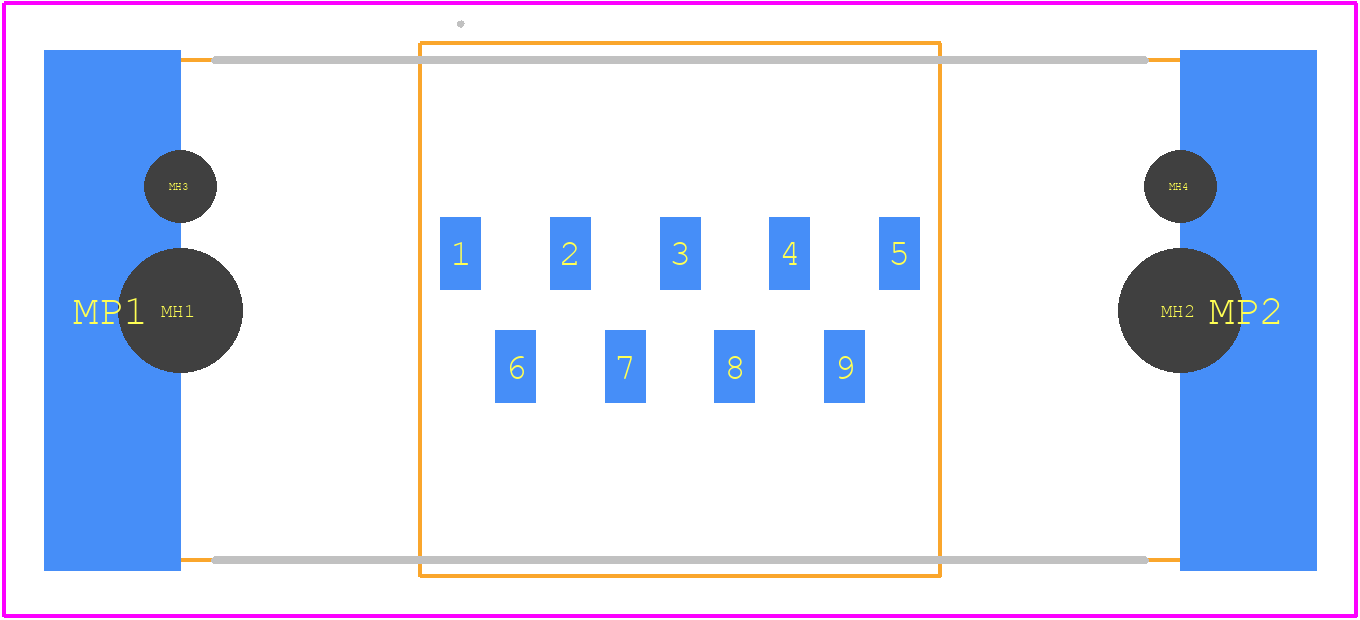

09551697811741 - HARTING PCB footprint - Other - Other - 09551697811741-3_2024
click to zoom
3D Models
09551697811741 - HARTING - 3D model - Other - 09551697811741-3_2024
click to zoom

09551697811741 Details

  • Manufacturer Part Number:

    09551697811741

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Option:

    GENERAL PURPOSE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09551697811741 Overview

Use the download button to access the 09551697811741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09551, or try a keyword search, such as D Type Connectors
