Part Image

09552156612741 - HARTING

Description: D-Sub SMT 15pin straight female, 4-40UNC threading, PL2 (reel of 140 pieces)

Download 09552156612741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09552156612741 - HARTING - PCB symbol
click to zoom

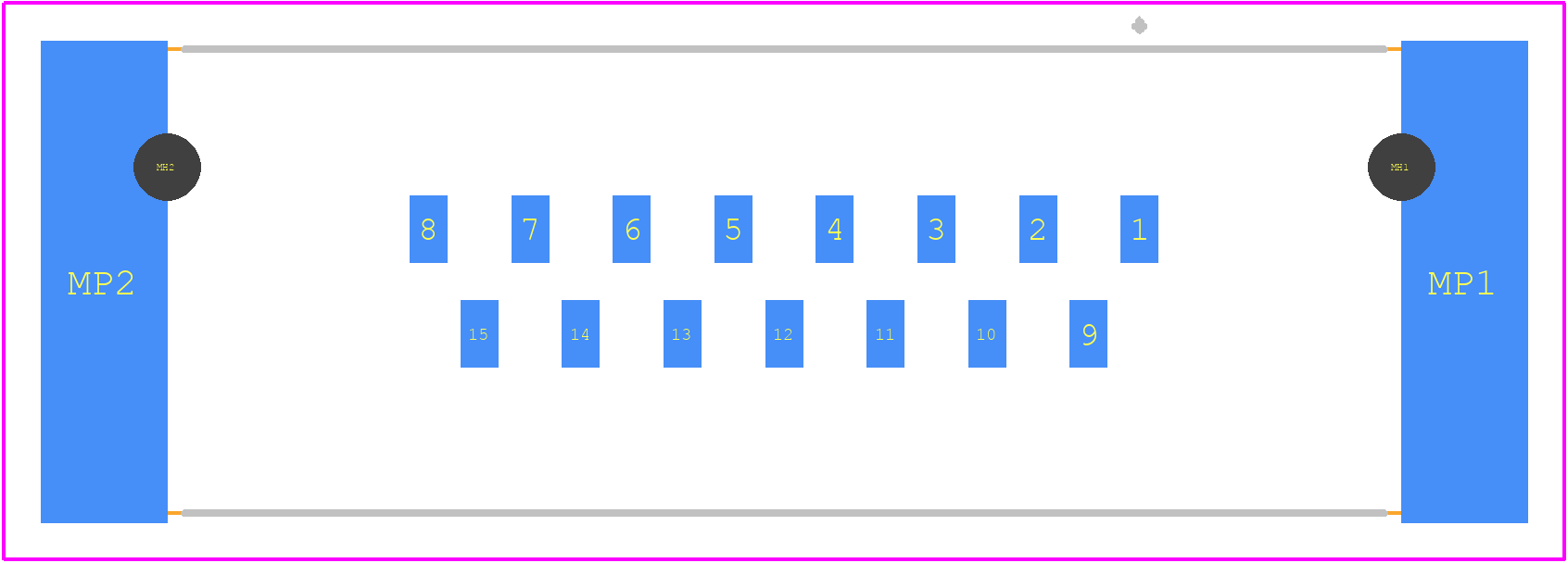

PCB Footprints
09552156612741 - HARTING PCB footprint - Other - Other - 09552156612741-1
click to zoom
3D Models
09552156612741 - HARTING - 3D model - Other - 09552156612741-1
click to zoom

09552156612741 Details

  • Manufacturer Part Number:

    09552156612741

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    2/A

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    15

09552156612741 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09552156612741 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2.
  • Yes, the connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The mating cycle life of the 09552156612741 connector is up to 500 mating cycles, depending on the specific application and environmental conditions.
  • Yes, the 09552156612741 connector is compatible with other HARTING connectors, including the Han series, and can be used in a variety of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09552156612741 Overview

Use the download button to access the 09552156612741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09552, or try a keyword search, such as D Type Connectors
