09552566615741 - HARTING

Description: D-Sub SMT 15pin angled low-profile female, w/ board locks, M3 thread, PL2

Download 09552566615741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

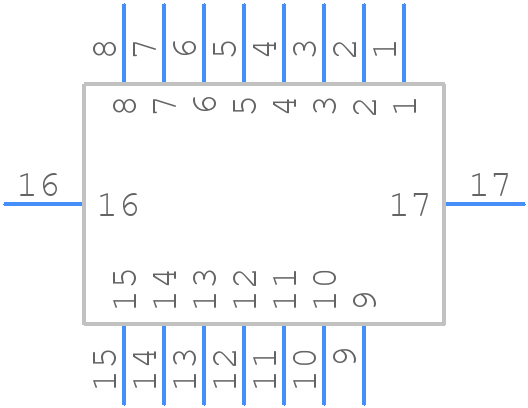

09552566615741 - HARTING - PCB symbol
click to zoom
PCB Footprints

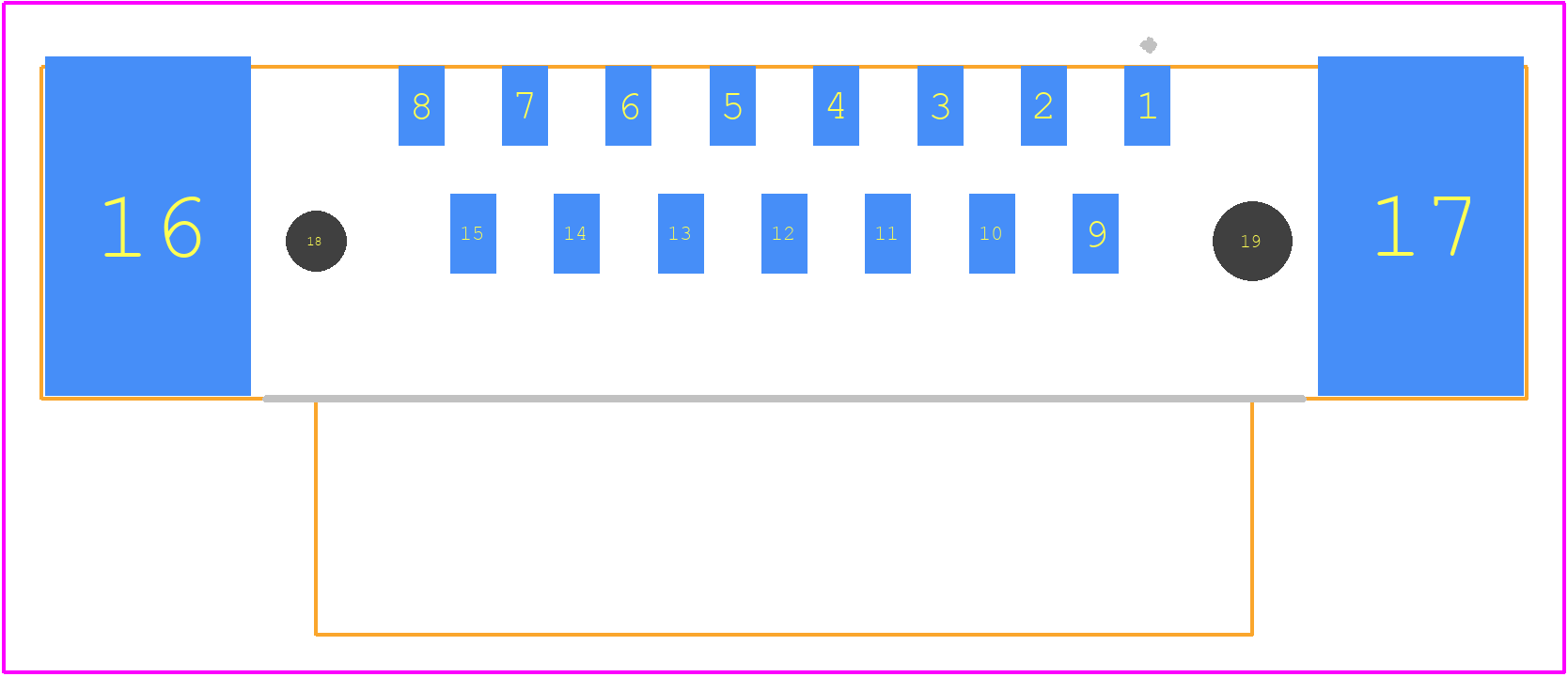

09552566615741 - HARTING PCB footprint - Other - Other - 09552563616741
click to zoom
3D Models
09552566615741 - HARTING - 3D model - Other - 09552563616741
click to zoom

09552566615741 Details

  • Manufacturer Part Number:

    09552566615741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09552566615741 Overview

Use the download button to access the 09552566615741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09552, or try a keyword search, such as D Type Connectors
