Part Image

09552566620741 - HARTING

Description: D-Sub SMT 15pin angled low-profile female, w/ board locks, non-removable 4-40UNC screw lock, PL2

Download 09552566620741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

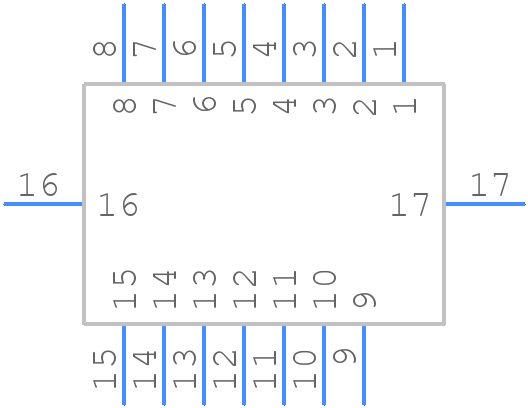

Symbol
09552566620741 - HARTING - PCB symbol
click to zoom

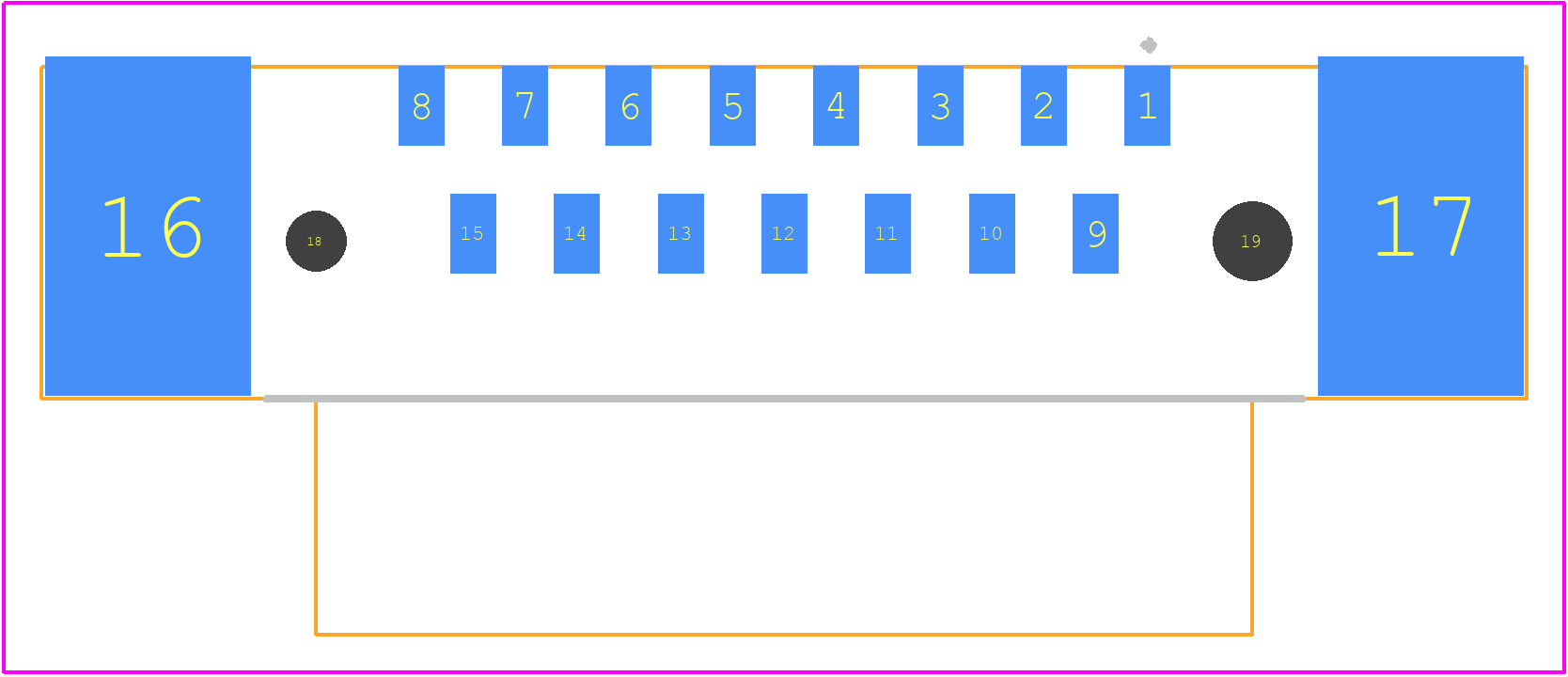

PCB Footprints
09552566620741 - HARTING PCB footprint - Other - Other - 09552563616741
click to zoom
3D Models
09552566620741 - HARTING - 3D model - Other - 09552563616741
click to zoom

09552566620741 Details

  • Manufacturer Part Number:

    09552566620741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09552566620741 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09552566620741 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09552566620741 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 09552566620741 connector is designed for use in harsh environments, with an operating temperature range of -40°C to +125°C and resistance to humidity and moisture according to IP67 and IP69K standards.
  • The 09552566620741 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09552566620741 connector is part of the HARTING Han series and is compatible with other Han series connectors, but it's recommended to check the specific compatibility with other connectors before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09552566620741 Overview

Use the download button to access the 09552566620741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09552, or try a keyword search, such as D Type Connectors
