The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09552666811741 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
Yes, the connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and construction equipment.
The maximum operating temperature range for this connector is -40°C to +125°C, making it suitable for use in a wide range of applications.
Yes, the 09552666811741 connector is designed to be compatible with other HARTING products, including cables, adapters, and connectors, ensuring seamless integration and compatibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09552666811741 Overview

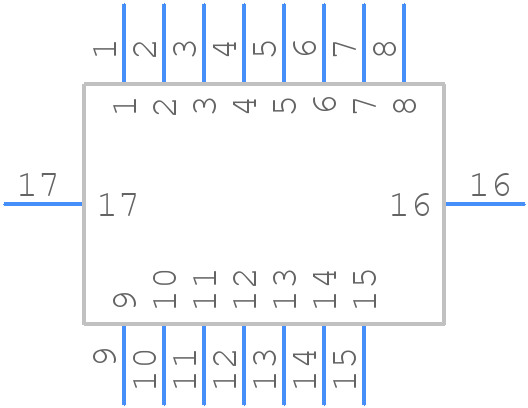

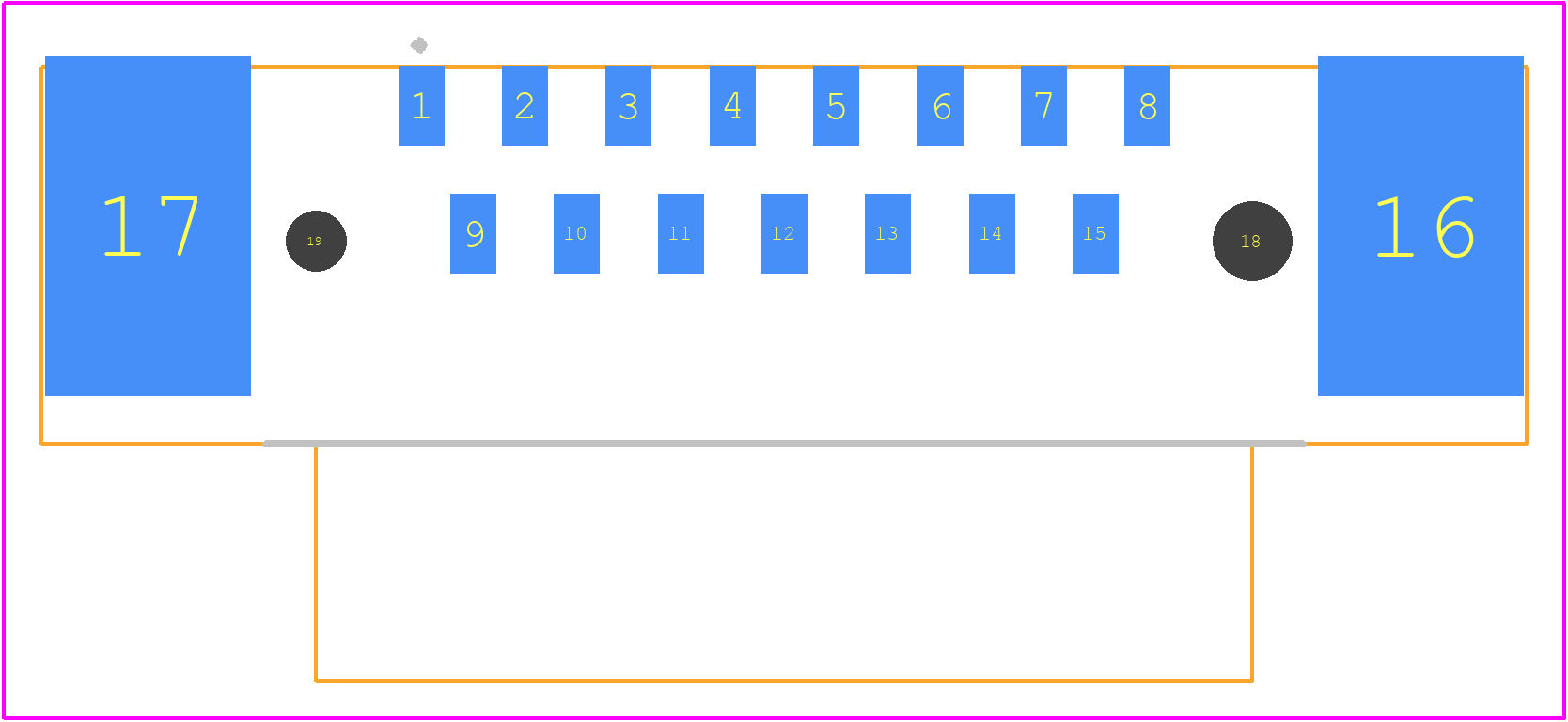

Use the download button to access the 09552666811741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09552,
or try a keyword search, such as D Type Connectors
