The recommended torque for screwing the connector is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their technical support for specific torque recommendations.
Yes, the 09553156611741 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured and mounted to prevent damage or disconnection. HARTING recommends following their guidelines for vibration testing and validation.
The 09553156611741 connector is designed to meet IP67 standards, making it suitable for outdoor and harsh environmental applications. However, it's essential to ensure that the connector is properly sealed and protected from extreme temperatures, humidity, and other environmental factors.
The 09553156611741 connector is designed to be compatible with other HARTING connectors. While it may be possible to use it with other manufacturers' mating connectors, it's essential to ensure compatibility and consult with the manufacturer's technical support to avoid any potential issues.
The 09553156611741 connector is designed to operate within a temperature range of -40°C to +125°C. However, it's essential to consult the datasheet and manufacturer's guidelines for specific temperature ratings and derating factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09553156611741 Overview

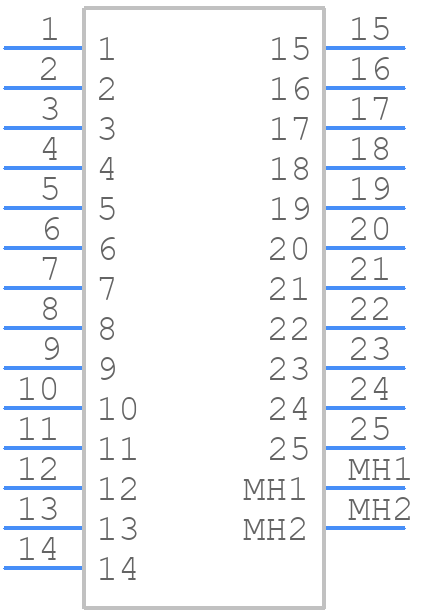

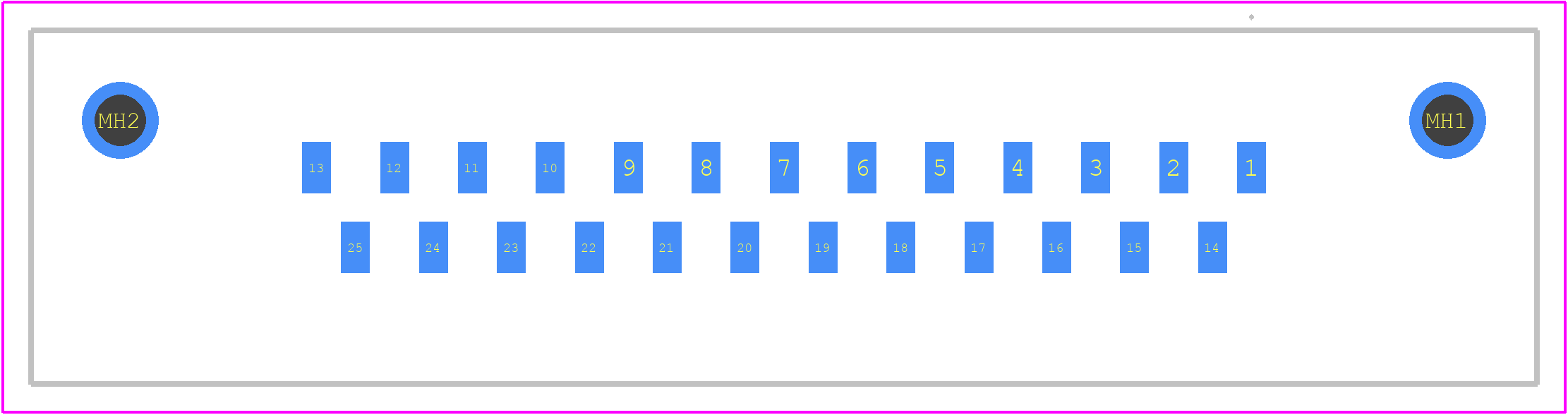

Use the download button to access the 09553156611741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09553,
or try a keyword search, such as D Type Connectors
