The recommended torque for screwing the 09553156622741 connector is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact HARTING support for specific torque recommendations.
Yes, the 09553156622741 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured and mounted according to the manufacturer's guidelines to maintain its integrity in high-vibration environments.
The 09553156622741 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to consider additional protection measures, such as conformal coating or potting, to ensure the connector's reliability in extreme environmental conditions.
The 09553156622741 connector is designed to be compatible with HARTING's mating components. While it may be possible to use it with other manufacturers' components, compatibility and reliability cannot be guaranteed. It's recommended to use HARTING's mating components to ensure optimal performance and reliability.
The 09553156622741 connector is designed to operate within a temperature range of -40°C to +125°C. However, it's essential to consult the datasheet and manufacturer's guidelines for specific temperature ratings and derating factors that may apply.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09553156622741 Overview

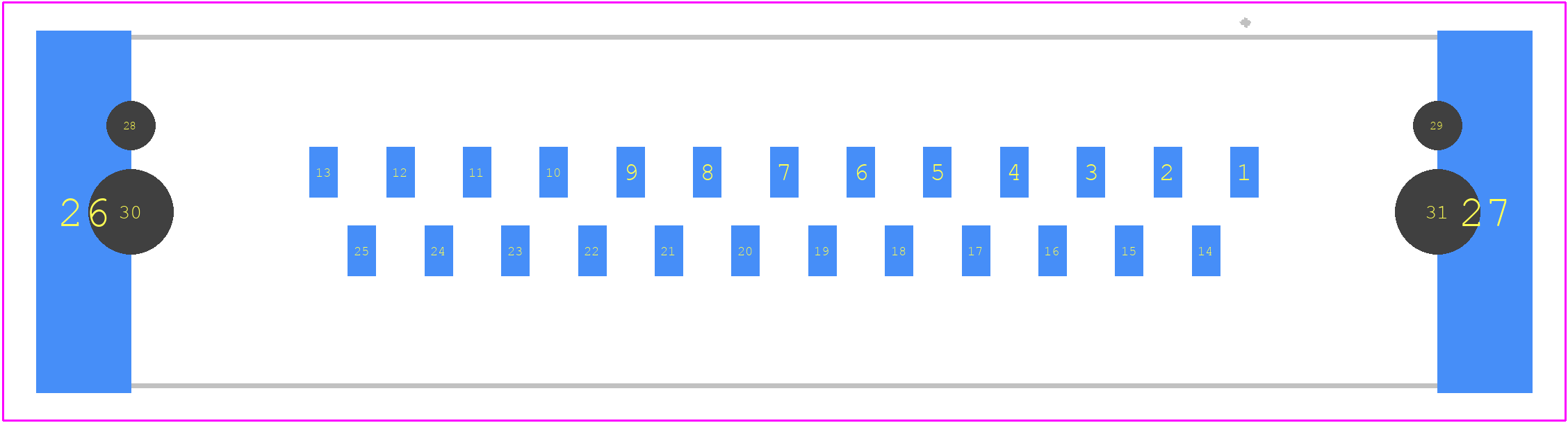

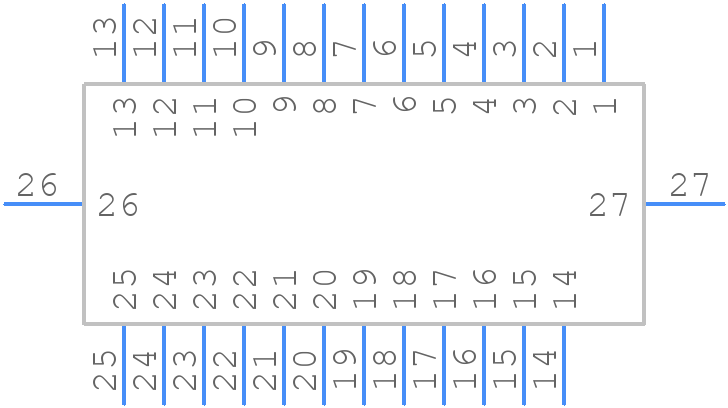

Use the download button to access the 09553156622741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09553,
or try a keyword search, such as D Type Connectors
