The recommended torque for screwing the connector is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their technical support for specific torque recommendations.
Yes, the 09553296822741 connector is designed to withstand high-vibration environments. However, it's crucial to ensure that the connector is properly secured and mounted to prevent damage or disconnection. HARTING recommends following their guidelines for vibration testing and validation.
The 09553296822741 connector is designed to be used in harsh environments, including outdoor applications. It has a IP67 rating, which means it can withstand dust and water ingress. However, it's essential to ensure that the connector is properly sealed and protected from extreme temperatures, humidity, and other environmental factors.
The 09553296822741 connector is designed to be compatible with other HARTING connectors. While it may be possible to use it with other manufacturers' mating connectors, it's not recommended without proper validation and testing. HARTING recommends using their connectors with their mating counterparts to ensure optimal performance and reliability.
The maximum operating temperature for the 09553296822741 connector is typically between -40°C to 125°C, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their technical support for specific temperature ratings.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09553296822741 Overview

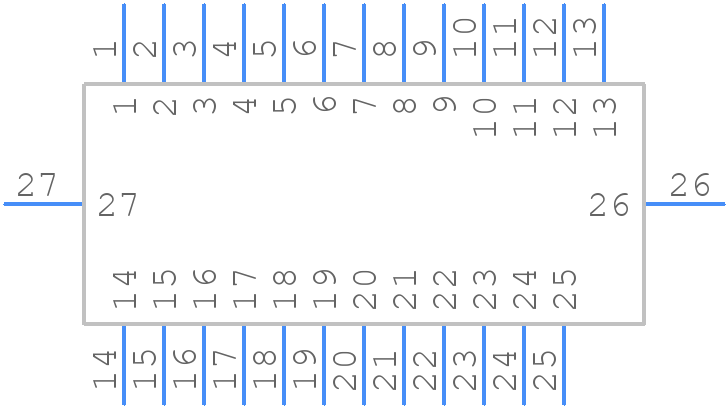

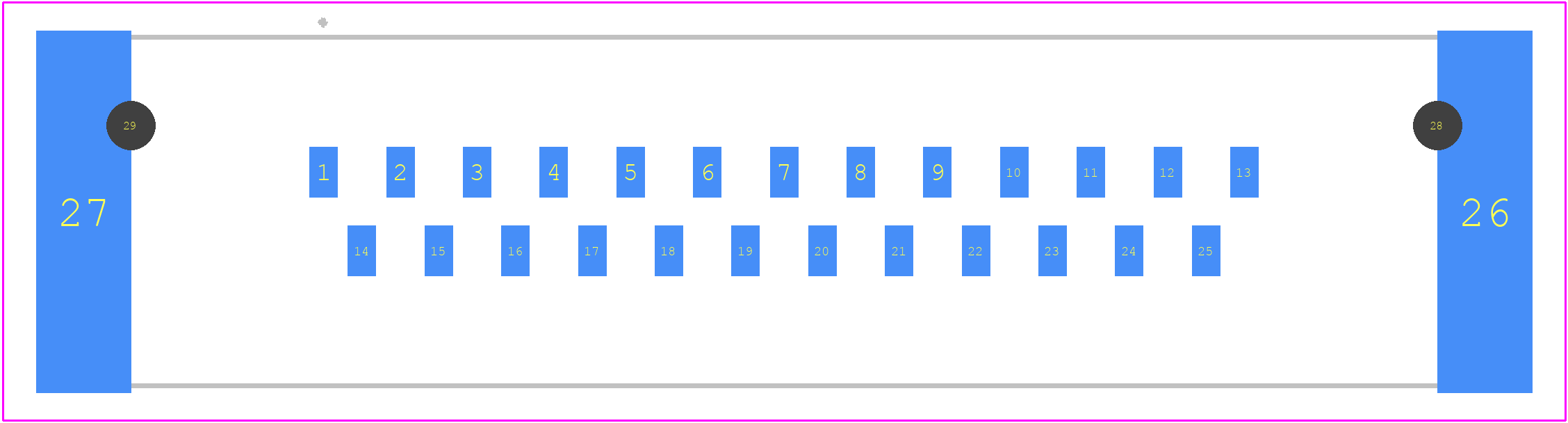

Use the download button to access the 09553296822741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09553,
or try a keyword search, such as D Type Connectors
