Part Image

09553297822741 - HARTING

Description: D-Sub SMT 25pin straight male, 4-40UNC non-removable jack screw, PL3 (reel of 140 pieces)

Download 09553297822741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

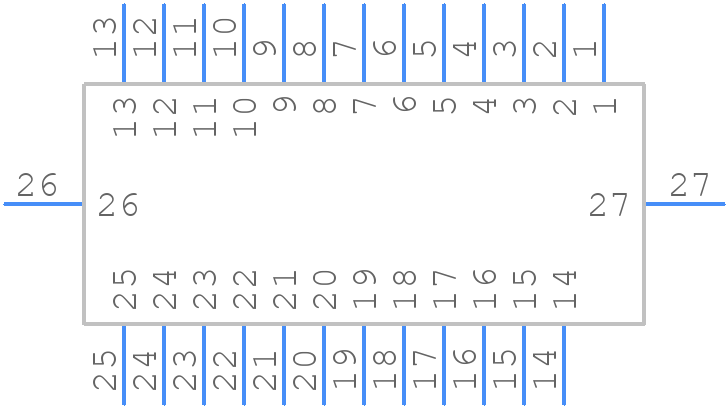

Symbol
09553297822741 - HARTING - PCB symbol
click to zoom

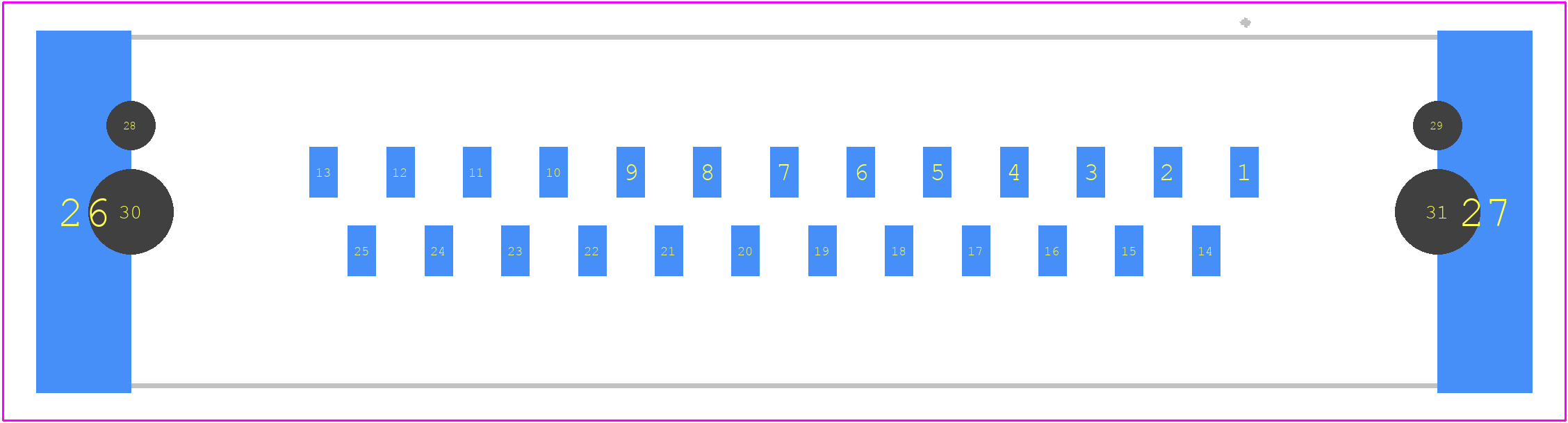

PCB Footprints
09553297822741 - HARTING PCB footprint - Other - Other - 09553157611741
click to zoom
3D Models
09553297822741 - HARTING - 3D model - Other - 09553157611741
click to zoom

09553297822741 Details

  • Manufacturer Part Number:

    09553297822741

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Option:

    GENERAL PURPOSE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09553297822741 Overview

Use the download button to access the 09553297822741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09553, or try a keyword search, such as D Type Connectors
