Part Image

09553567619741 - HARTING

Description: Connector, Low-profile, Reflow soldering termination (SMT), Rated current: 5 A, Female, Size: D-Sub 3

Download 09553567619741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

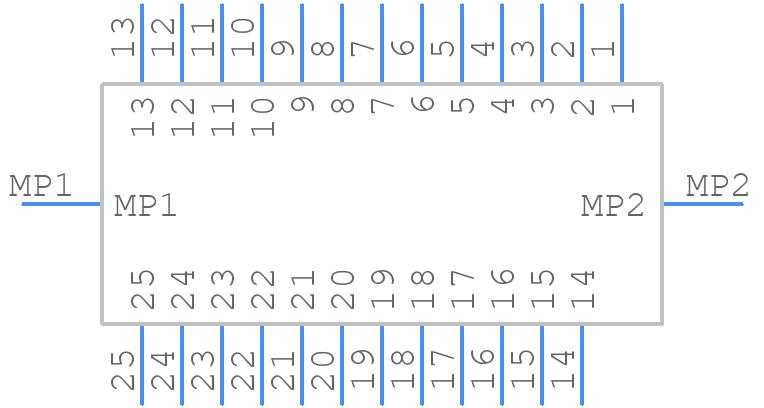

Symbol
09553567619741 - HARTING - PCB symbol
click to zoom

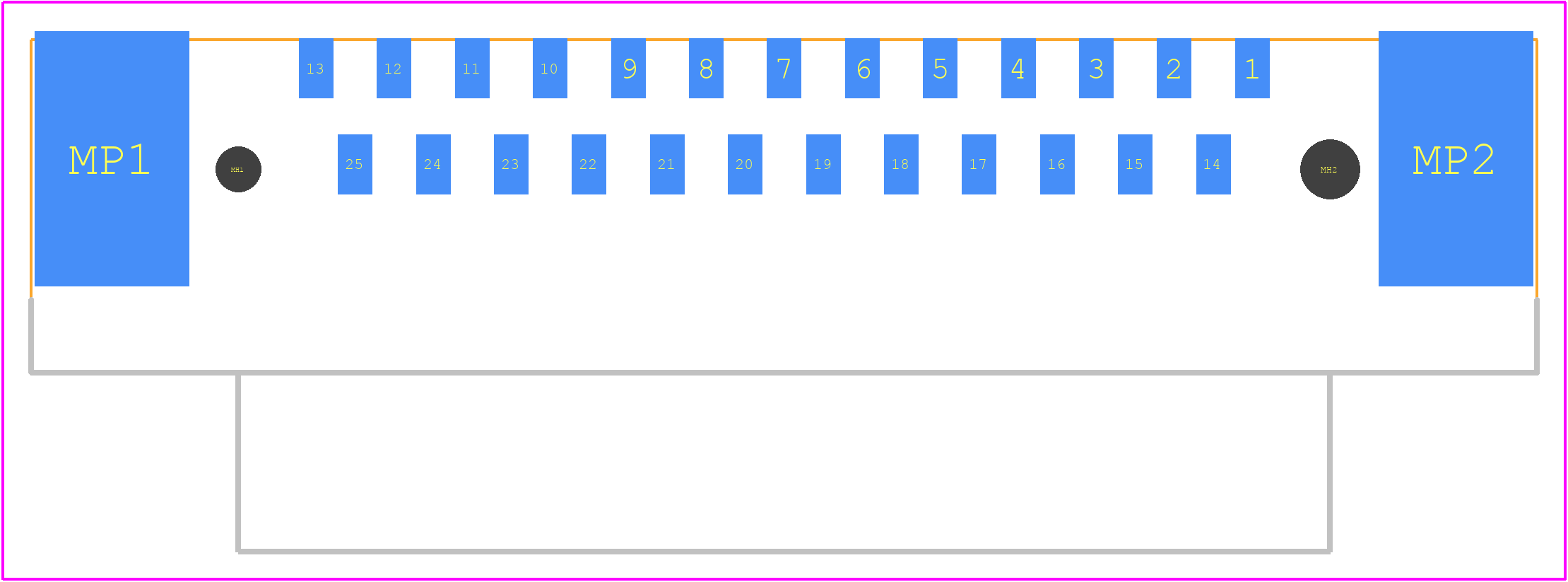

PCB Footprints
09553567619741 - HARTING PCB footprint - Other - Other - 09553567619741
click to zoom
3D Models
09553567619741 - HARTING - 3D model - Other - 09553567619741
click to zoom

09553567619741 Details

  • Manufacturer Part Number:

    09553567619741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09553567619741 Overview

Use the download button to access the 09553567619741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09553, or try a keyword search, such as D Type Connectors
