09553663821741 - HARTING

Description: Connector, Reflow soldering termination (SMT), Rated current: ?5 A, Male, Size: D-Sub 3, Liquid crystal polymer (LCP), Steel, nickel plated, Zamac

Download 09553663821741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

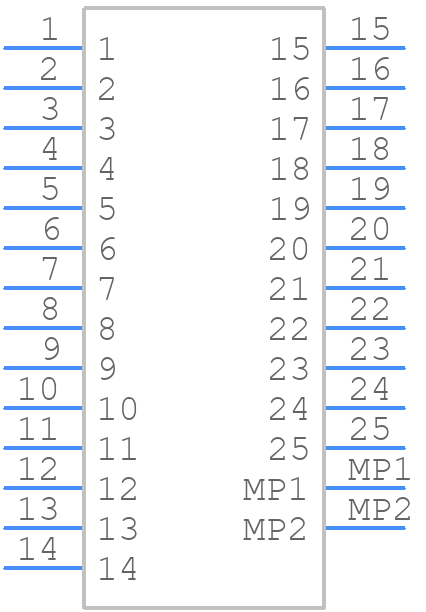

09553663821741 - HARTING - PCB symbol
click to zoom
PCB Footprints

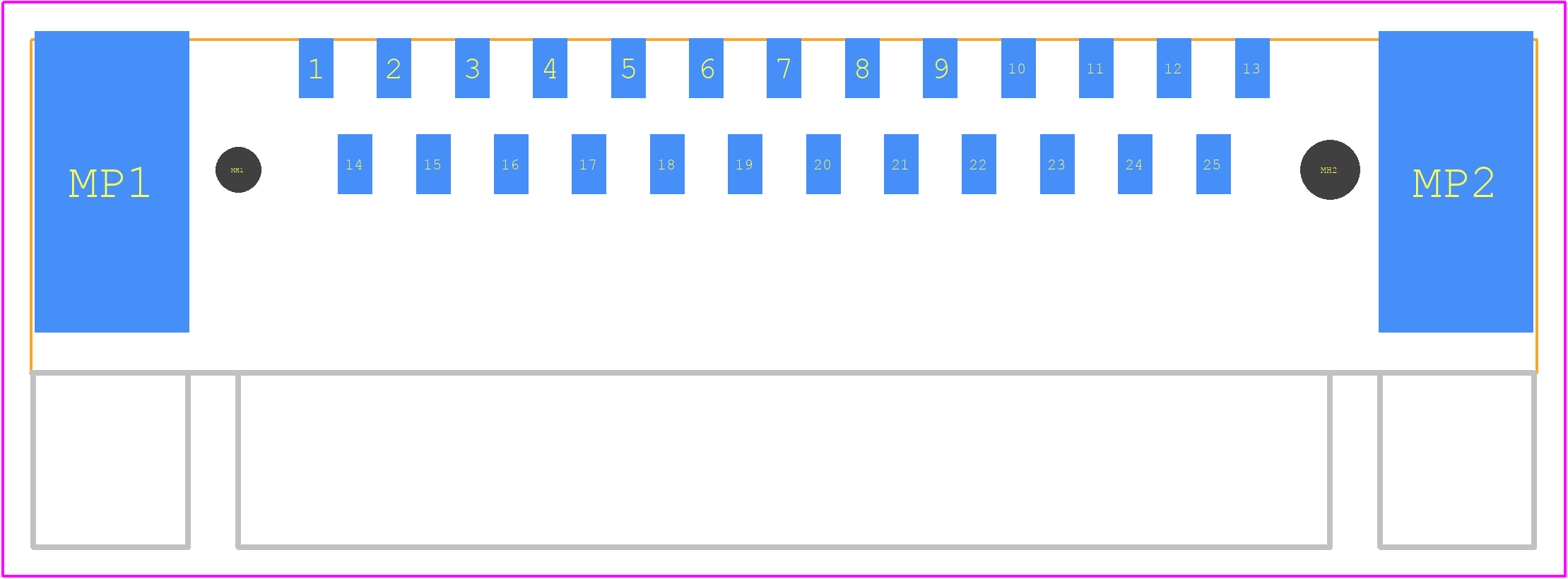

09553663821741 - HARTING PCB footprint - Other - Other - 09553663821741-1
click to zoom
3D Models
09553663821741 - HARTING - 3D model - Other - 09553663821741-1
click to zoom

09553663821741 Details

  • Manufacturer Part Number:

    09553663821741

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09553663821741 Overview

Use the download button to access the 09553663821741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09553, or try a keyword search, such as D Type Connectors
