The recommended torque value is typically specified in the manufacturer's application notes or installation instructions, but for HARTING connectors, a general guideline is to apply 0.5-1.5 Nm of torque for mating and unmating.
Yes, the 09553666812741 connector is designed to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to consult with HARTING's technical support to ensure the connector meets the specific vibration requirements of your application.
The 09553666812741 connector is designed to operate in a temperature range of -40°C to +125°C and can withstand humid environments. However, it's crucial to consult the datasheet and HARTING's technical support to ensure the connector meets the specific environmental requirements of your application.
The 09553666812741 connector is designed for a minimum of 500 mating cycles, but this can vary depending on the application and environmental conditions. It's recommended to consult with HARTING's technical support for specific guidance on mating cycle durability.
Yes, HARTING recommends following their cleaning and maintenance guidelines to ensure the connector's performance and longevity. This may include using specific cleaning solvents, avoiding certain materials, and performing regular inspections.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09553666812741 Overview

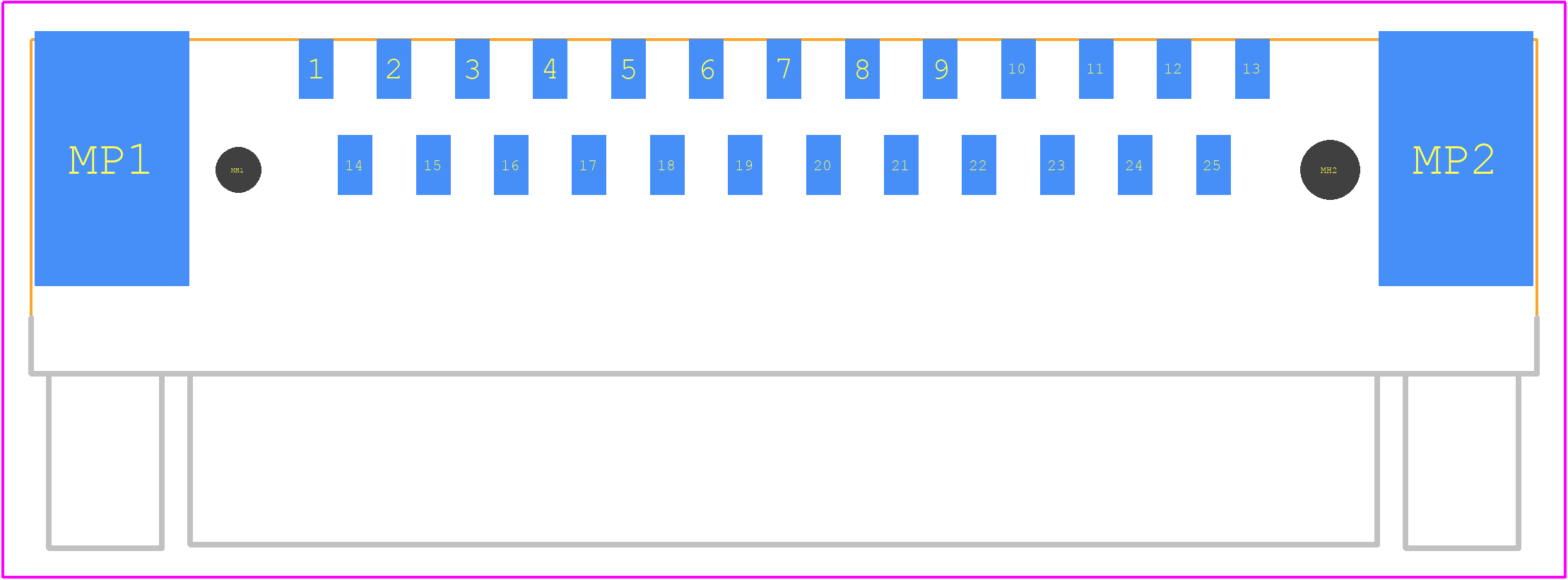

Use the download button to access the 09553666812741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09553,
or try a keyword search, such as D Type Connectors
