09553666816741 - HARTING

Description: D-Sub SMT 25pin angled low-profile male, w/ board locks, 4-40UNC thread, PL2

Download 09553666816741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09553666816741 - HARTING - PCB symbol
click to zoom
PCB Footprints

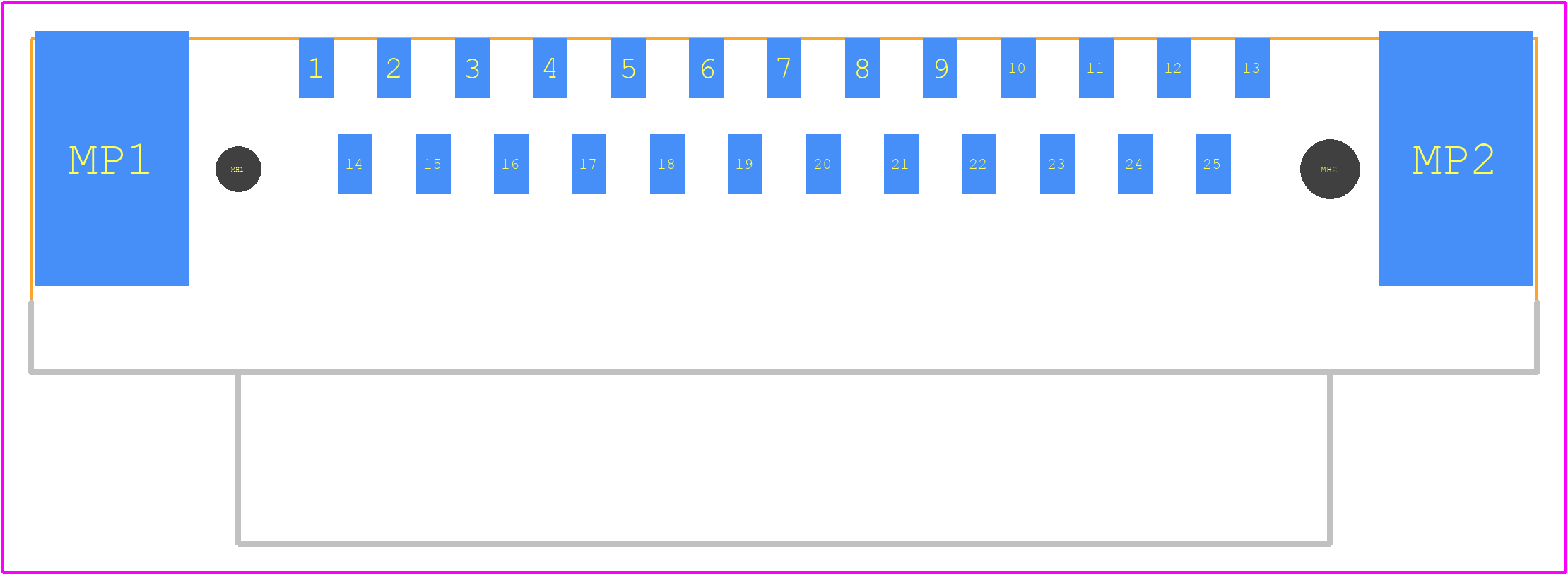

09553666816741 - HARTING PCB footprint - Other - Other - 09553666816741-1
click to zoom
3D Models
09553666816741 - HARTING - 3D model - Other - 09553666816741-1
click to zoom

09553666816741 Details

  • Manufacturer Part Number:

    09553666816741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    3/B

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    25

09553666816741 Frequently Asked Questions (FAQs)

  • The operating temperature range for this connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and harsh environments.
  • Yes, the 09553666816741 connector is designed for outdoor use and can withstand exposure to moisture, dust, and other environmental factors. It meets the IP67 rating for ingress protection.
  • The mating cycle life of this connector is 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 09553666816741 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and more.
  • Yes, the 09553666816741 connector is part of the HARTING Han series and is compatible with other Han series products, allowing for easy integration into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09553666816741 Overview

Use the download button to access the 09553666816741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09553, or try a keyword search, such as D Type Connectors
