09553666821741 - HARTING

Description: D-Sub SMT 25pin angled male, w/ board locks, non-removable M3 screw lock, PL2

Download 09553666821741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

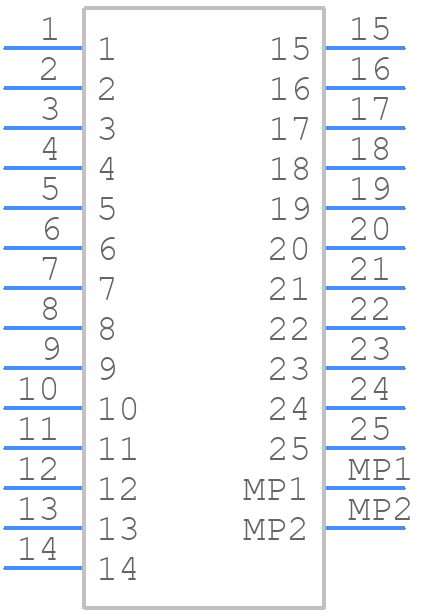

09553666821741 - HARTING - PCB symbol
click to zoom
PCB Footprints

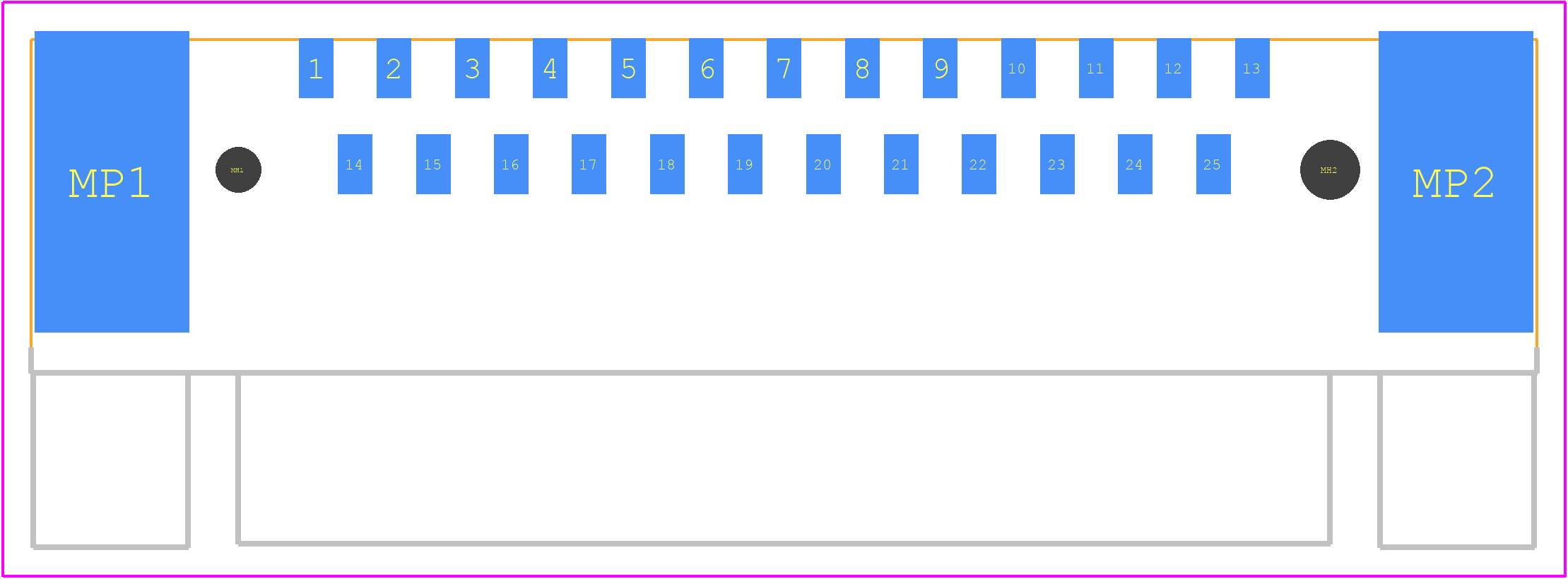

09553666821741 - HARTING PCB footprint - Other - Other - 09553666821741-1
click to zoom
3D Models
09553666821741 - HARTING - 3D model - Other - 09553666821741-1
click to zoom

09553666821741 Details

  • Manufacturer Part Number:

    09553666821741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09553666821741 Overview

Use the download button to access the 09553666821741 schematic symbol, PCB footprint, and 3D model.
