0955406886 - Molex

Description: Modular Jack, Right-Angle, Surface Mount, 8/8, Int. Shielded, Low Profile, Reel

Download 0955406886 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0955406886 - Molex - PCB symbol
click to zoom
PCB Footprints

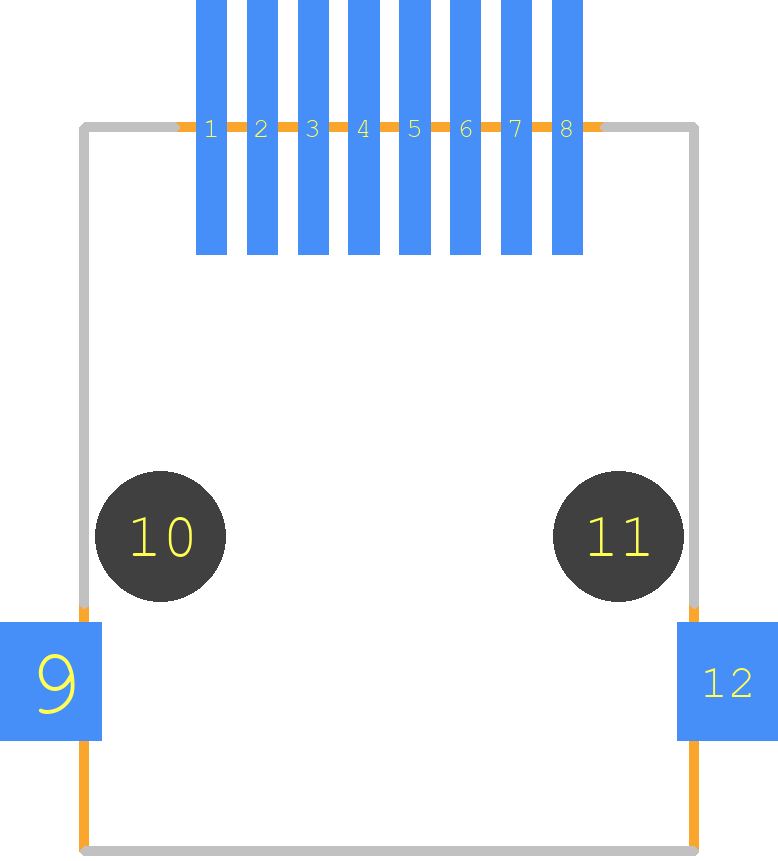

0955406886 - Molex PCB footprint - Other - Other - 0955406886
click to zoom
3D Models
0955406886 - Molex - 3D model - Other - 0955406886
click to zoom

0955406886 Details

  • Manufacturer Part Number:

    0955406886

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Ireland, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3

0955406886 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 0955406886 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 0955406886 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 0955406886 connector is designed for automated assembly and can be used with pick-and-place machines.
  • The mating cycle life of the 0955406886 connector is 500 cycles minimum.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0955406886 Overview

Use the download button to access the 0955406886 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09554, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
