95540-2881 - Molex

95540-2881 Details

• Manufacturer Part Number:

  95540-2881

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Ireland, Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Molex

• YTEOL:

  8

• Additional Feature:

  LOW PROFILE, SHIELDED

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.453 inch

• Body Depth:

  0.713 inch

• Body Length:

  0.62 inch

• Body/Shell Style:

  JACK

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  TELCOM, MODULAR

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  500 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

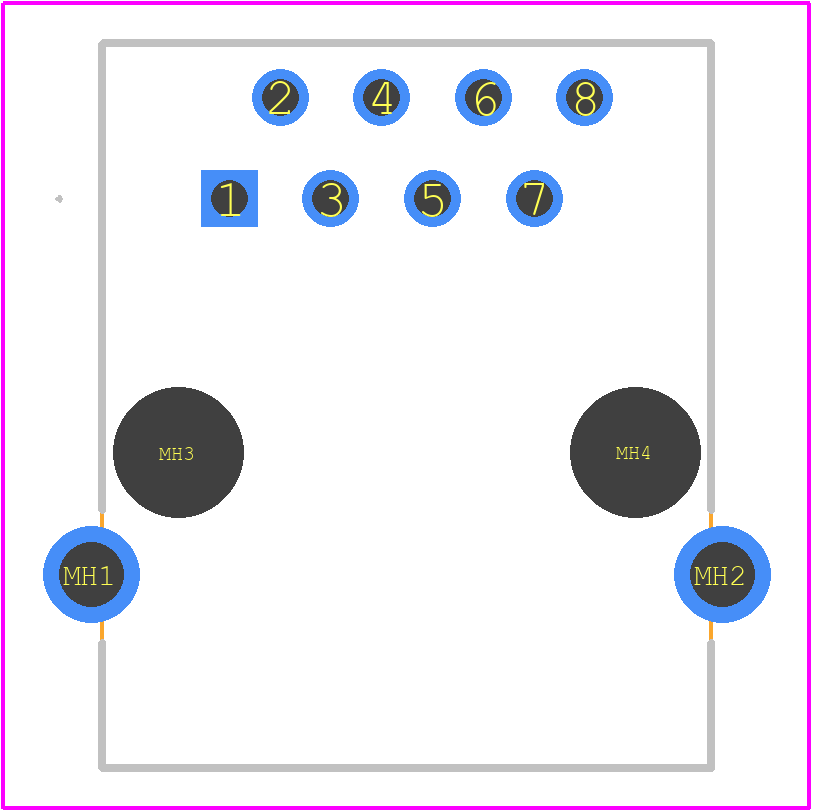

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  COPPER ALLOY

• Terminal Length:

  0.13 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  8

• UL Flammability Code:

  94V-0
