09554567616741 - HARTING

Description: D-Sub SMT 37pin angled low-profile female, w/ board locks, 4-40UNC thread, PL3

Download 09554567616741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09554567616741 - HARTING - PCB symbol
click to zoom
PCB Footprints

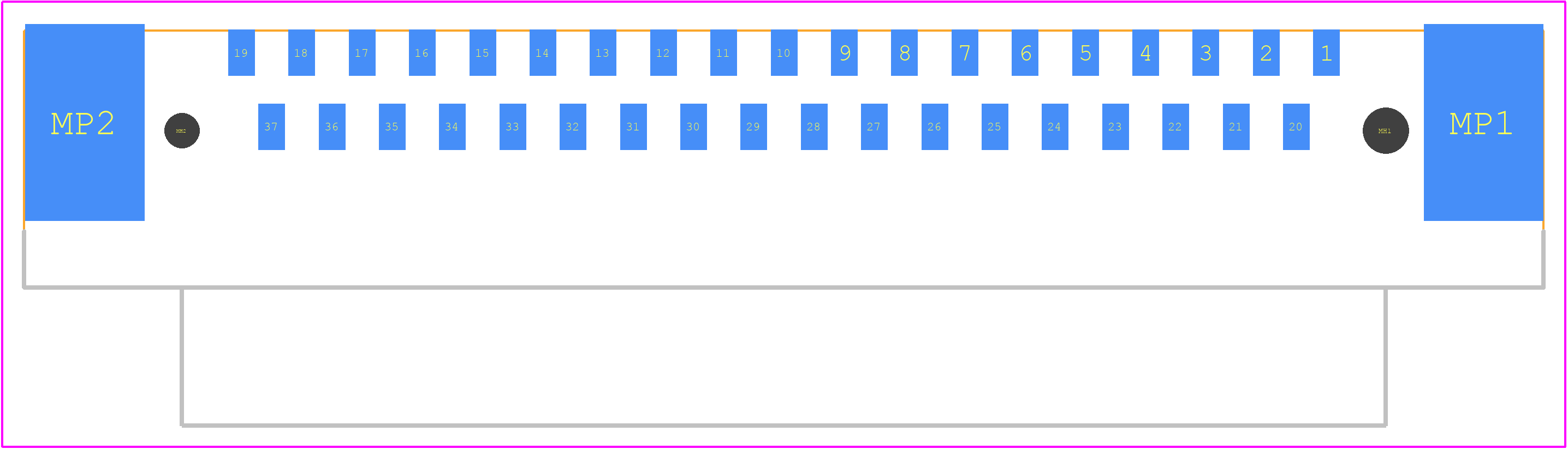

09554567616741 - HARTING PCB footprint - Other - Other - 09554567616741
click to zoom
3D Models
09554567616741 - HARTING - 3D model - Other - 09554567616741
click to zoom

09554567616741 Details

  • Manufacturer Part Number:

    09554567616741

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09554567616741 Overview

Use the download button to access the 09554567616741 schematic symbol, PCB footprint, and 3D model.
