09554666816741 - HARTING

Description: D-Sub SMT 37pin angled low-profile male, w/ board locks, 4-40UNC thread, PL2

Download 09554666816741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09554666816741 - HARTING - PCB symbol
click to zoom
PCB Footprints

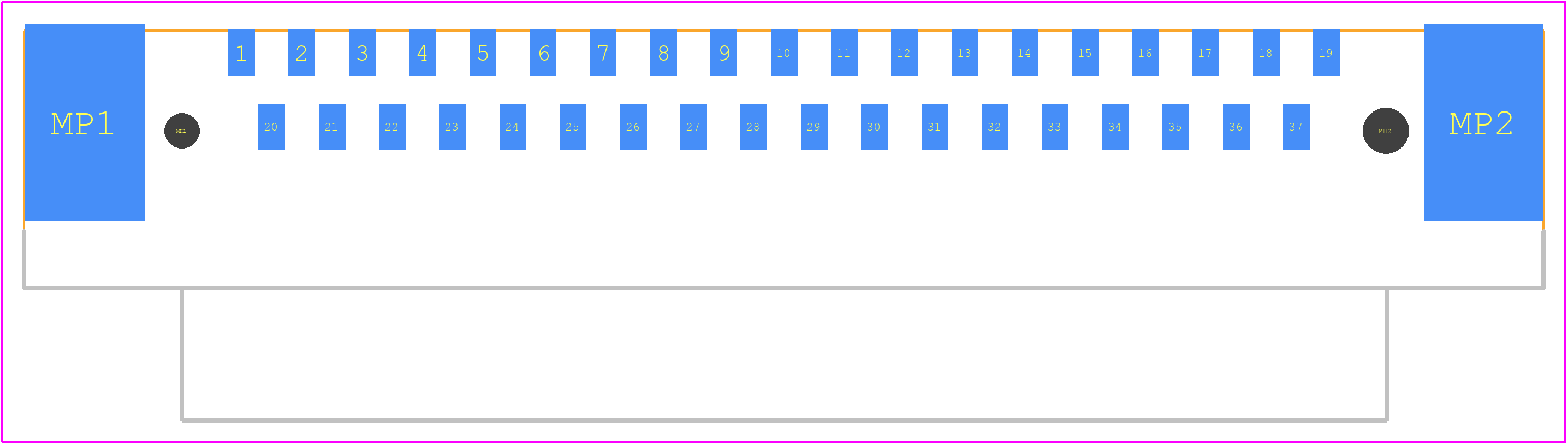

09554666816741 - HARTING PCB footprint - Other - Other - 09554666816741
click to zoom
3D Models
09554666816741 - HARTING - 3D model - Other - 09554666816741
click to zoom

09554666816741 Details

  • Manufacturer Part Number:

    09554666816741

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09554666816741 Overview

Use the download button to access the 09554666816741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09554, or try a keyword search, such as D Type Connectors
