09561515512 - HARTING

Description: High Density D-Sub 15pin straight female with board locks, PLS4, 4-40UNC threading

Download 09561515512 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09561515512 - HARTING - PCB symbol
click to zoom

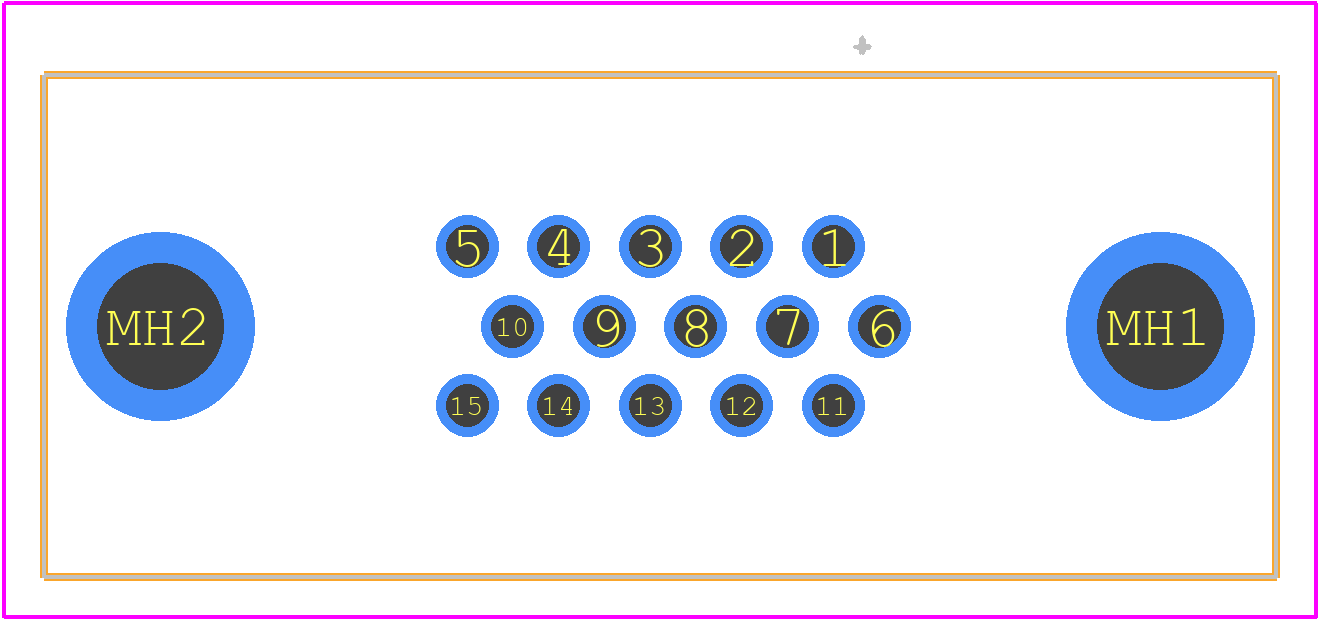

PCB Footprints
09561515512 - HARTING PCB footprint - Other - Other - 09561515512-1
click to zoom
3D Models
09561515512 - HARTING - 3D model - Other - 09561515512-1
click to zoom

09561515512 Details

  • Manufacturer Part Number:

    09561515512

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09561515512 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09561515512 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09561515512 connector is designed for outdoor use and can withstand harsh environmental conditions, including temperature extremes, humidity, and exposure to water and dust.
  • Yes, the 09561515512 connector is designed to withstand high-vibration environments and can be used in applications such as industrial machinery, transportation, and construction equipment.
  • Yes, the 09561515512 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.
  • The maximum operating temperature of the 09561515512 connector is 125°C, making it suitable for use in high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09561515512 Overview

Use the download button to access the 09561515512 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09561, or try a keyword search, such as D Type Connectors
