09561615713 - HARTING

Description: High Density D-Sub 15pin straight male with board locks, PLS4, 4-40UNC screw lock

Download 09561615713 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09561615713 - HARTING - PCB symbol
click to zoom
PCB Footprints

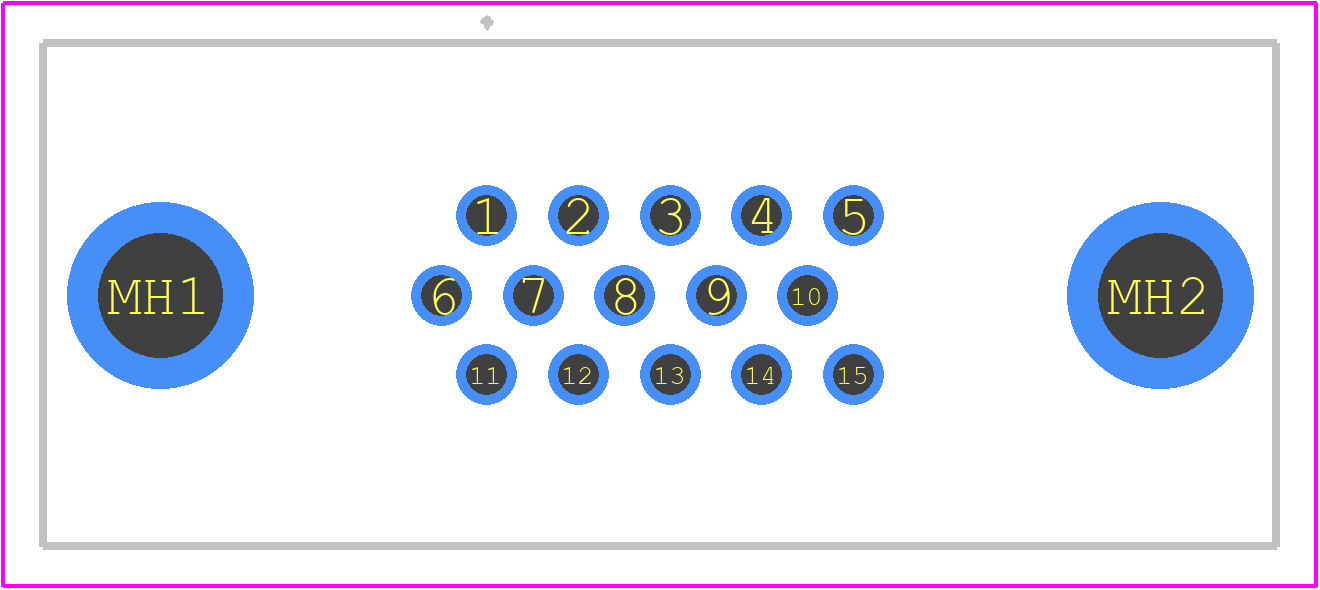

09561615713 - HARTING PCB footprint - Other - Other - 09561615713
click to zoom
3D Models
09561615713 - HARTING - 3D model - Other - 09561615713
click to zoom

09561615713 Details

  • Manufacturer Part Number:

    09561615713

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09561615713 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09561615713 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09561615713 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 09561615713 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and humidity resistance up to 95% RH.
  • The 09561615713 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09561615713 connector is designed to be compatible with other HARTING connectors in the same series, but it's recommended to check the specific compatibility with other connectors before use.
