09561617712 - HARTING

Description: High Density D-Sub 15pin straight male with board locks, PL3, 4-40UNC threading

Download 09561617712 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09561617712 - HARTING - PCB symbol
click to zoom
PCB Footprints

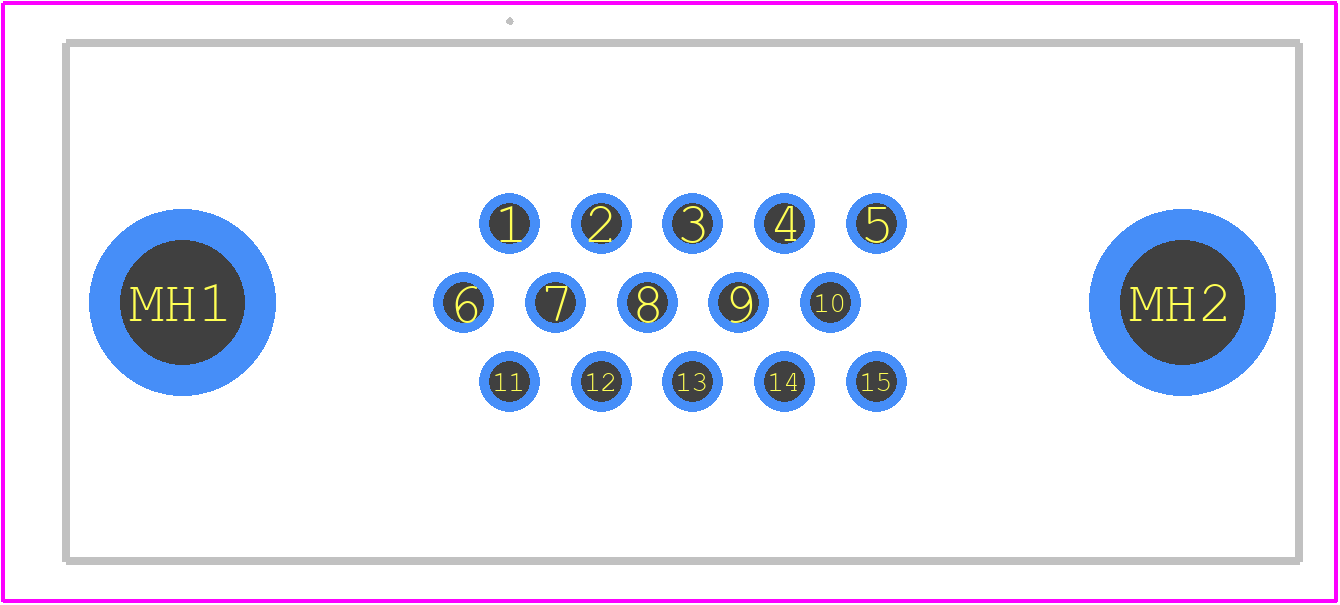

09561617712 - HARTING PCB footprint - Other - Other - 09561617712-1
click to zoom
3D Models
09561617712 - HARTING - 3D model - Other - 09561617712-1
click to zoom

09561617712 Details

  • Manufacturer Part Number:

    09561617712

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09561617712 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09561617712 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09561617712 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09561617712 connector is designed to withstand high-vibration environments and can be used in applications such as industrial machinery, transportation, and aerospace.
  • Yes, the 09561617712 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration and interchangeability.
  • The maximum operating temperature of the 09561617712 connector is 125°C, making it suitable for use in high-temperature applications.
