09562515500 - HARTING

Description: High Density D-Sub 26pin straight female, PLS4

Download 09562515500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09562515500 - HARTING - PCB symbol
click to zoom
PCB Footprints

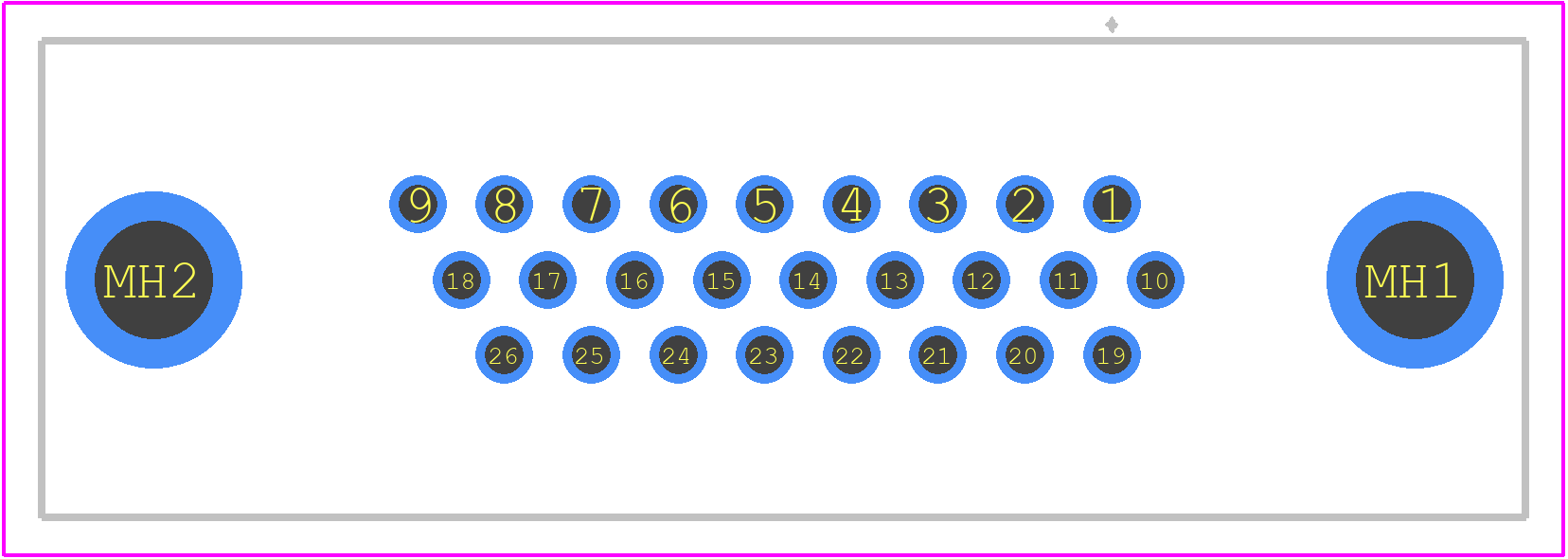

09562515500 - HARTING PCB footprint - Other - Other - 09562515500-2
click to zoom
3D Models
09562515500 - HARTING - 3D model - Other - 09562515500-2
click to zoom

09562515500 Details

  • Manufacturer Part Number:

    09562515500

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: MIL-C-24308; DIN 41652, PANEL MOUNT

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

09562515500 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09562515500 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09562515500 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09562515500 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance according to IEC 60529 IP67.
  • Yes, the 09562515500 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
  • The maximum current rating for the 09562515500 connector is 40 A per contact, depending on the specific application and environmental conditions.
