Part Image

09562615700 - HARTING

Description: High Density D-Sub 26pin straight male, PLS4

Download 09562615700 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09562615700 - HARTING - PCB symbol
click to zoom

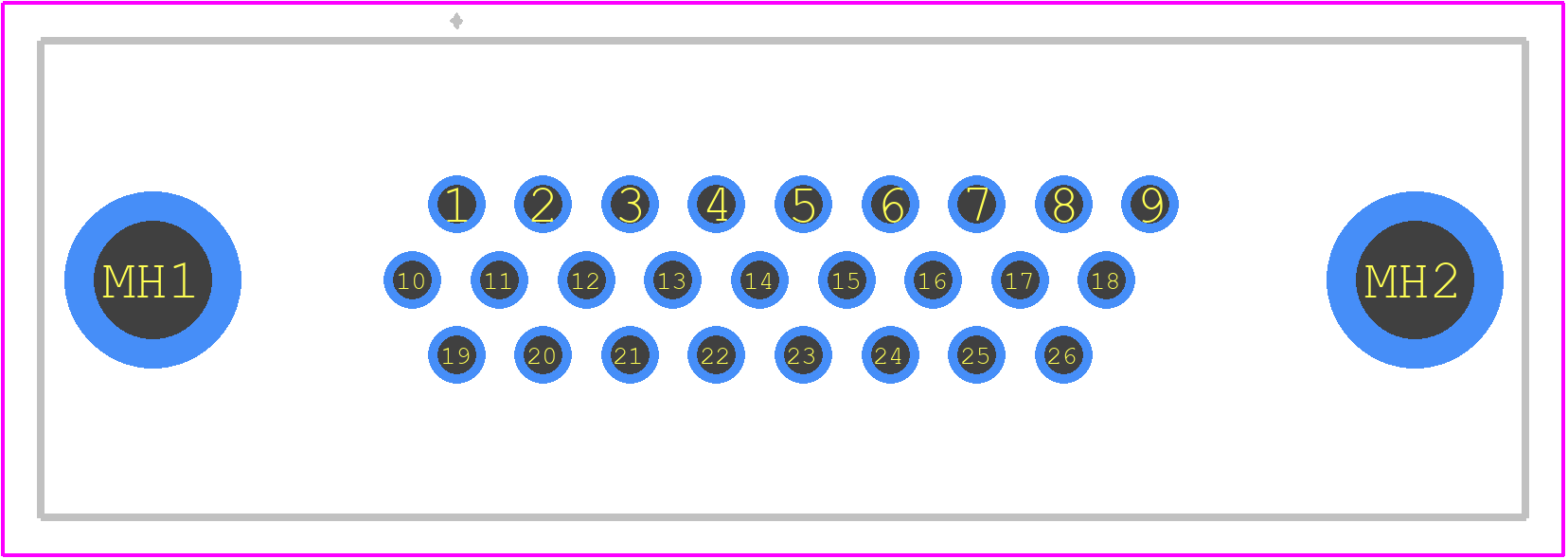

PCB Footprints
09562615700 - HARTING PCB footprint - Other - Other - 09562615700-1
click to zoom
3D Models
09562615700 - HARTING - 3D model - Other - 09562615700-1
click to zoom

09562615700 Details

  • Manufacturer Part Number:

    09562615700

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: MIL-C-24308; DIN 41652, PANEL MOUNT

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

09562615700 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09562615700 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09562615700 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6). However, it's recommended to consult with HARTING's technical support for specific vibration requirements.
  • The 09562615700 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels (up to 95% RH). However, it's recommended to consult with HARTING's technical support for specific environmental requirements and potential derating.
  • The 09562615700 connector is part of HARTING's Han series, which is designed to be compatible with other Han series connectors. However, compatibility with third-party connectors should be verified through testing and validation.
  • The recommended cable size and type for use with the 09562615700 connector depends on the specific application and requirements. However, HARTING recommends using cables with a diameter of 1.5 mm to 10 mm and a wire size of AWG 24 to AWG 16.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09562615700 Overview

Use the download button to access the 09562615700 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09562, or try a keyword search, such as D Type Connectors
