09562625813 - HARTING

09562625813 Details

• Manufacturer Part Number:

  09562625813

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  8

• Additional Feature:

  STANDARDS: MIL-C-24308; DIN 41652

• Body Breadth:

  0.509 inch

• Body Depth:

  0.646 inch

• Body Length:

  1.555 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  25 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.09 inch

• Mating Contact Row Spacing:

  0.078 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

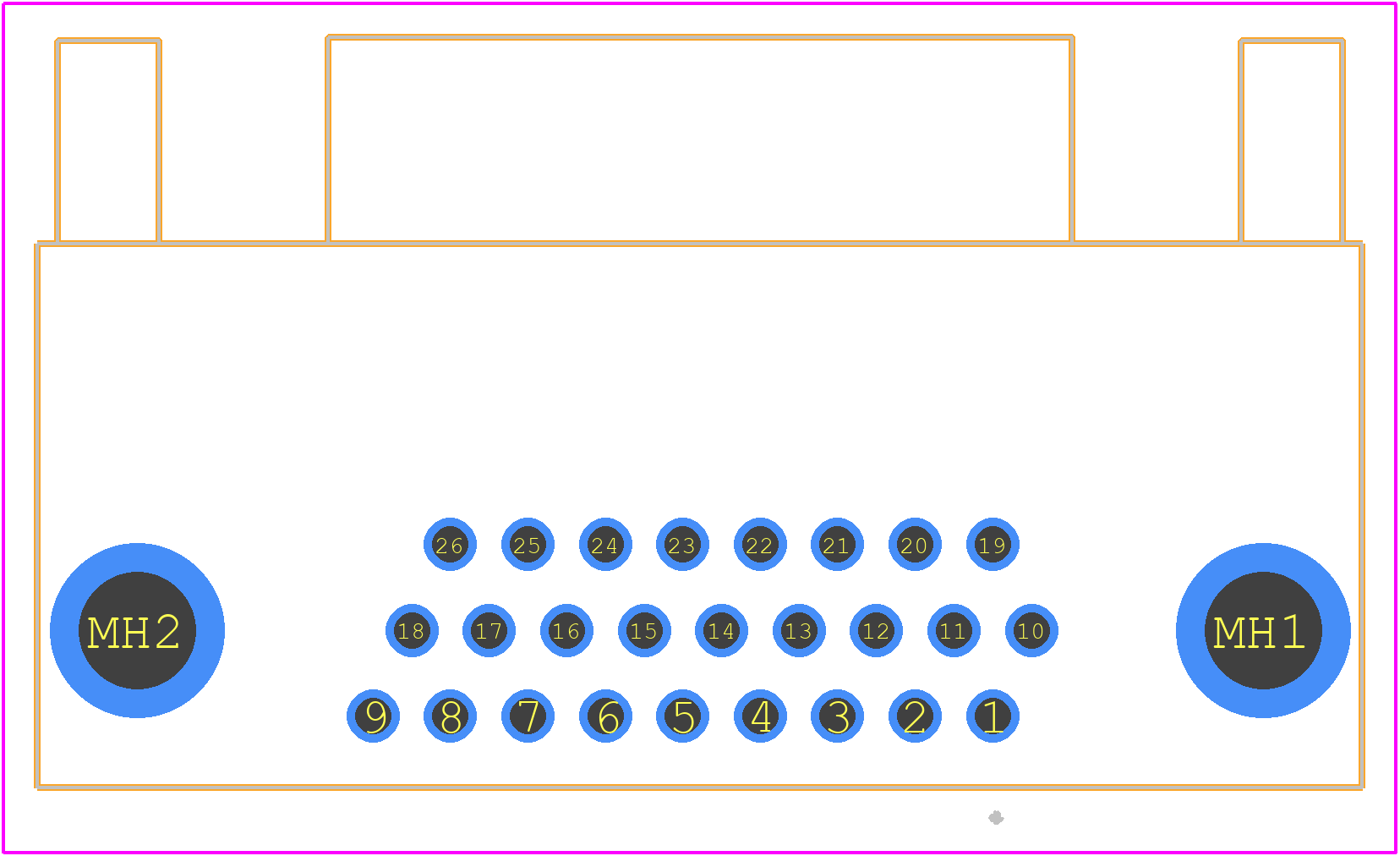

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  2 A

• Reference Standard:

  UL

• Shell Material:

  STEEL

• Shell Size:

  2/A

• Terminal Length:

  0.14 inch

• Terminal Pitch:

  2.286 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0
