The recommended torque for screwing the 09563515500 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09563515500 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
Yes, the 09563515500 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other environments where vibration is a concern.
The 09563515500 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
Yes, the 09563515500 connector is designed to be compatible with other HARTING products, including cables, adapters, and other connectors, allowing for easy integration into existing systems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09563515500 Overview

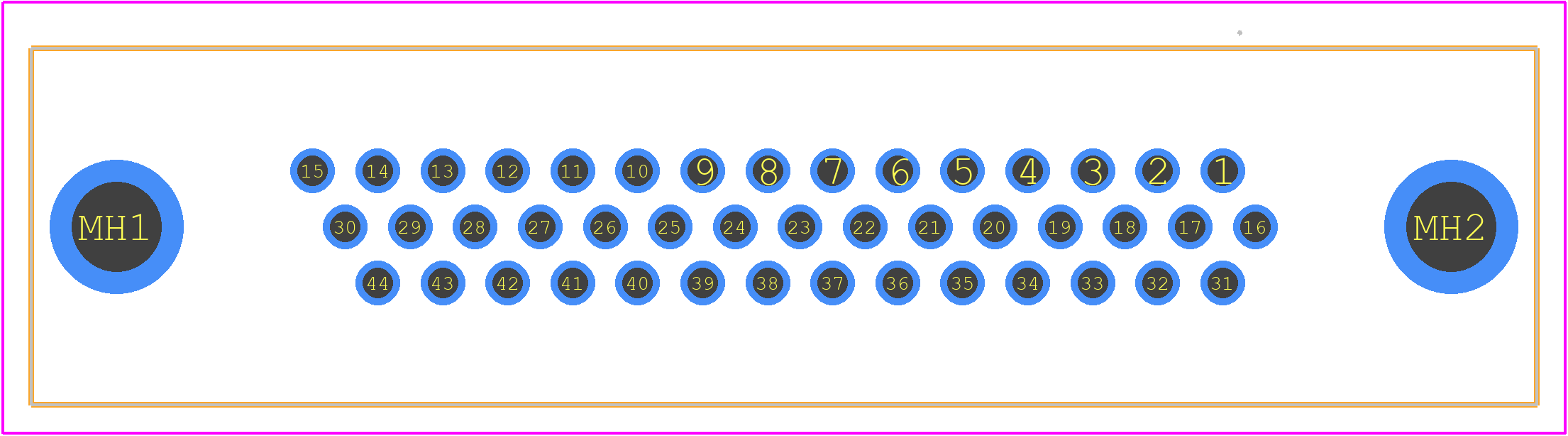

Use the download button to access the 09563515500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09563,
or try a keyword search, such as D Type Connectors
