09563615713 - HARTING

Description: High Density D-Sub 44pin straight male with board locks, PLS4, 4-40UNC screw lock

Download 09563615713 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

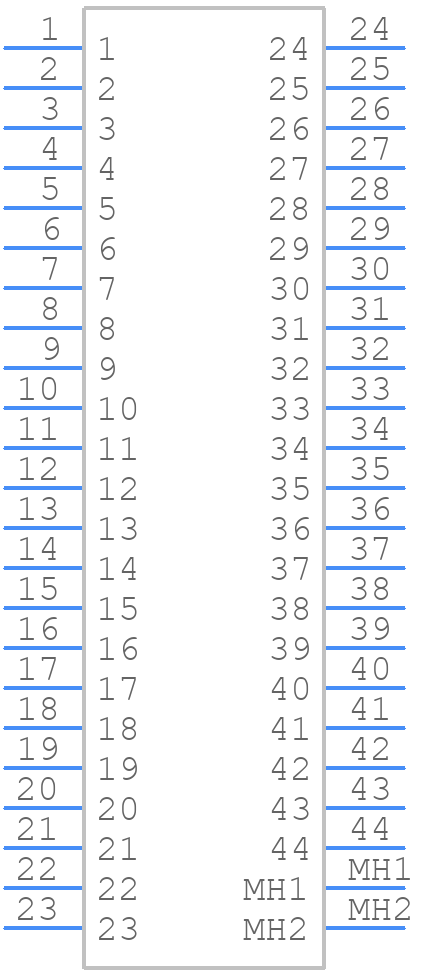

Symbol
09563615713 - HARTING - PCB symbol
click to zoom

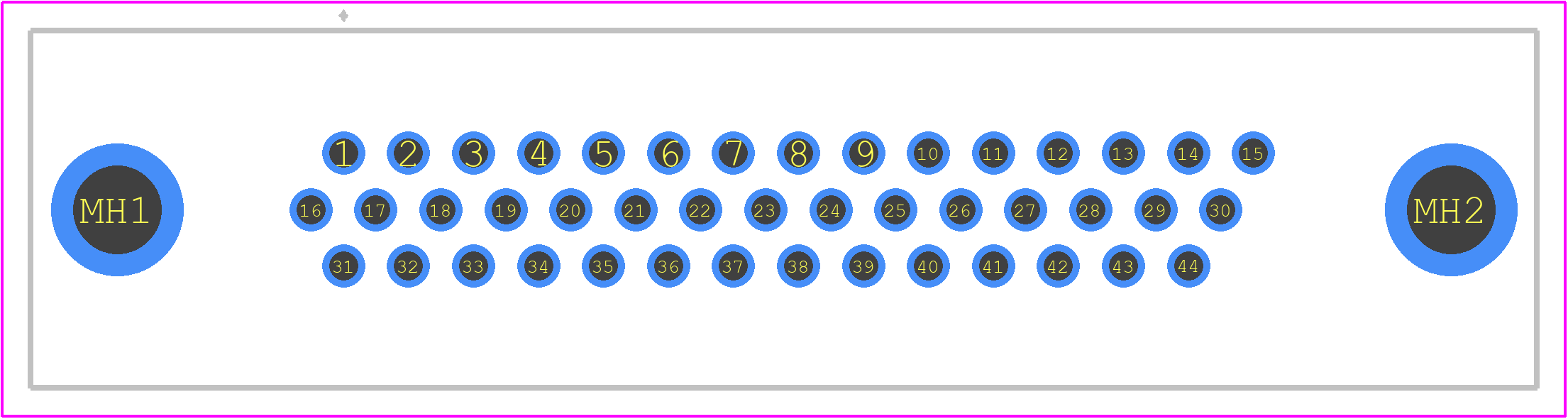

PCB Footprints
09563615713 - HARTING PCB footprint - Other - Other - 09563615713-2
click to zoom
3D Models
09563615713 - HARTING - 3D model - Other - 09563615713-2
click to zoom

09563615713 Details

  • Manufacturer Part Number:

    09563615713

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    44

  • UL Flammability Code:

    94V-0

09563615713 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09563615713 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09563615713 connector is designed to withstand high-vibration applications, with a tested vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 09563615713 connector is designed to operate in harsh environmental conditions, including temperatures ranging from -40°C to 125°C, and is resistant to moisture, dust, and chemicals.
  • The 09563615713 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • Yes, the 09563615713 connector is designed to be compatible with other HARTING connectors, including the Han-Modular series, allowing for flexible and modular system design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09563615713 Overview

Use the download button to access the 09563615713 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09563, or try a keyword search, such as D Type Connectors
