09563617713 - HARTING

Description: High Density D-Sub 44pin straight male with board locks, PL3, 4-40UNC screw lock

Download 09563617713 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

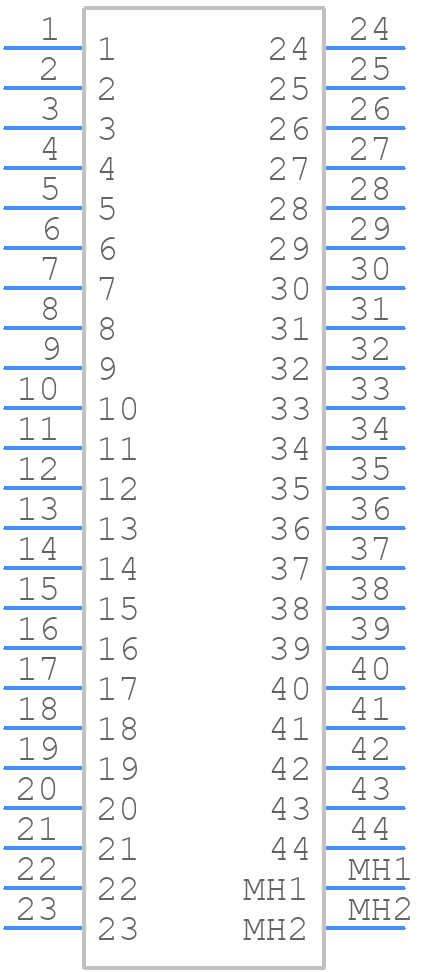

09563617713 - HARTING - PCB symbol
click to zoom
PCB Footprints

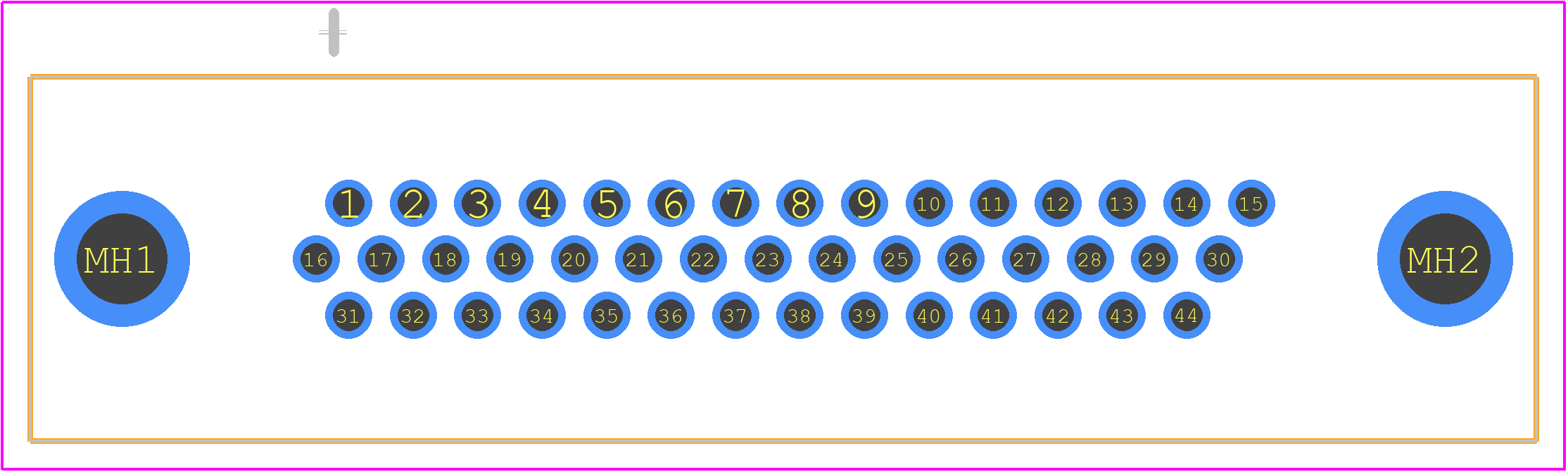

09563617713 - HARTING PCB footprint - Other - Other - 09563617713-3
click to zoom
3D Models
09563617713 - HARTING - 3D model - Other - 09563617713-3
click to zoom

09563617713 Details

  • Manufacturer Part Number:

    09563617713

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    44

  • UL Flammability Code:

    94V-0

09563617713 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09563617713 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09563617713 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09563617713 connector is designed to withstand high-vibration environments and can be used in applications such as industrial machinery, transportation, and aerospace.
  • Yes, the 09563617713 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration and interchangeability.
  • The maximum operating temperature of the 09563617713 connector is 125°C, making it suitable for use in high-temperature applications.
