09564515500 - HARTING

Description: High Density D-Sub 62pin straight female, PLS4

Download 09564515500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09564515500 - HARTING - PCB symbol
click to zoom
PCB Footprints

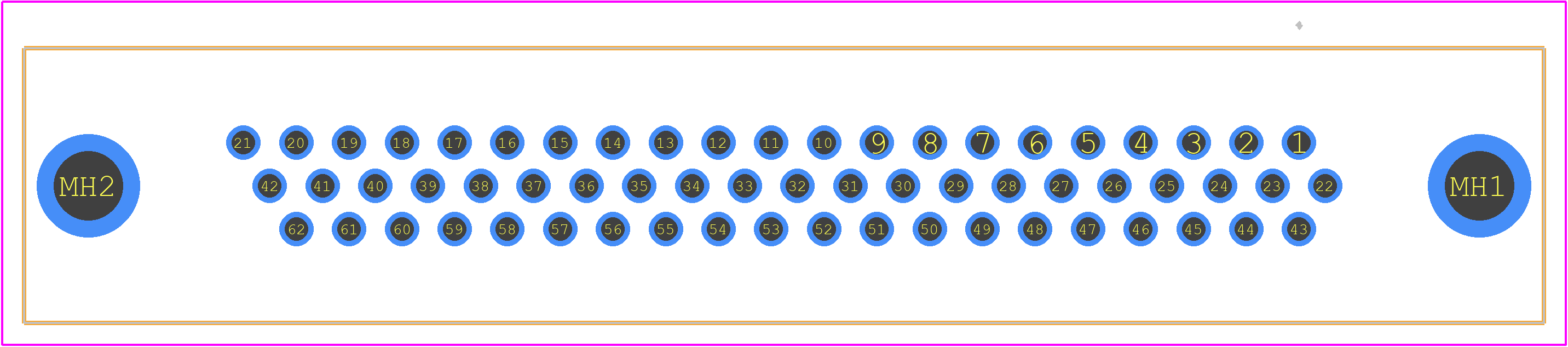

09564515500 - HARTING PCB footprint - Other - Other - 09564515500-2
click to zoom
3D Models
09564515500 - HARTING - 3D model - Other - 09564515500-2
click to zoom

09564515500 Details

  • Manufacturer Part Number:

    09564515500

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: MIL-C-24308; DIN 41652, PANEL MOUNT

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    62

  • UL Flammability Code:

    94V-0

09564515500 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09564515500 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10g acceleration.
  • Yes, the 09564515500 connector has an IP67 rating, making it suitable for outdoor use and harsh environments, including exposure to dust and water.
  • The 09564515500 connector has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications.
  • Yes, the 09564515500 connector is designed to accommodate cables with a diameter range of 4.5 mm to 7.5 mm.
