09565527612 - HARTING

Description: High Density D-Sub 78pin angled female with board locks, PL3, 4-40UNC threading

Download 09565527612 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

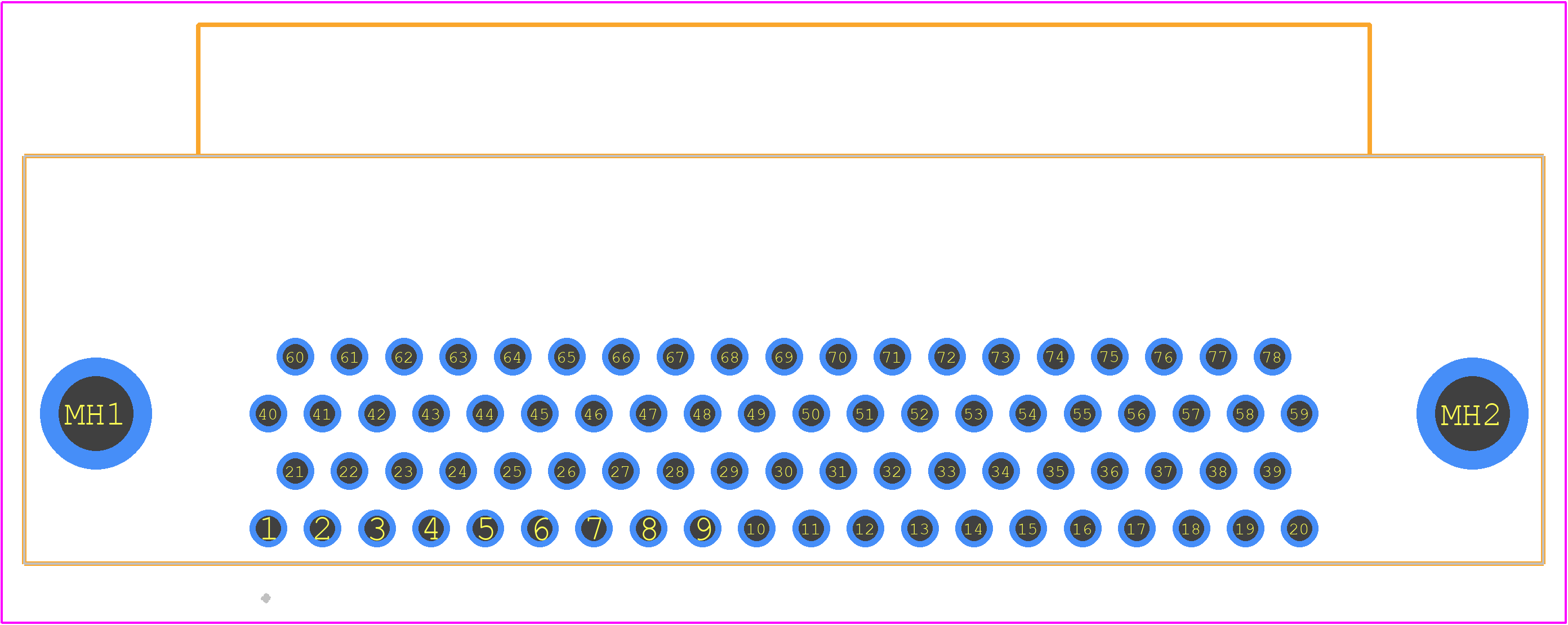

09565527612 - HARTING PCB footprint - Other - Other - 09565527612-1
click to zoom
3D Models
09565527612 - HARTING  - 3D model - Other - 09565527612-1
click to zoom

09565527612 Details

  • Manufacturer Part Number:

    09565527612

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-C-24308; DIN 41652, PANEL MOUNT

  • Body Breadth:

    0.605 inch

  • Body Depth:

    0.689 inch

  • Body Length:

    2.638 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.095 inch

  • Mating Contact Row Spacing:

    0.082 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.413 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    78

  • UL Flammability Code:

    94V-0
