09565617712 - HARTING

Description: High Density D-Sub 78pin straight male with board locks, PL3, 4-40UNC threading

Download 09565617712 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09565617712 - HARTING - PCB symbol
click to zoom

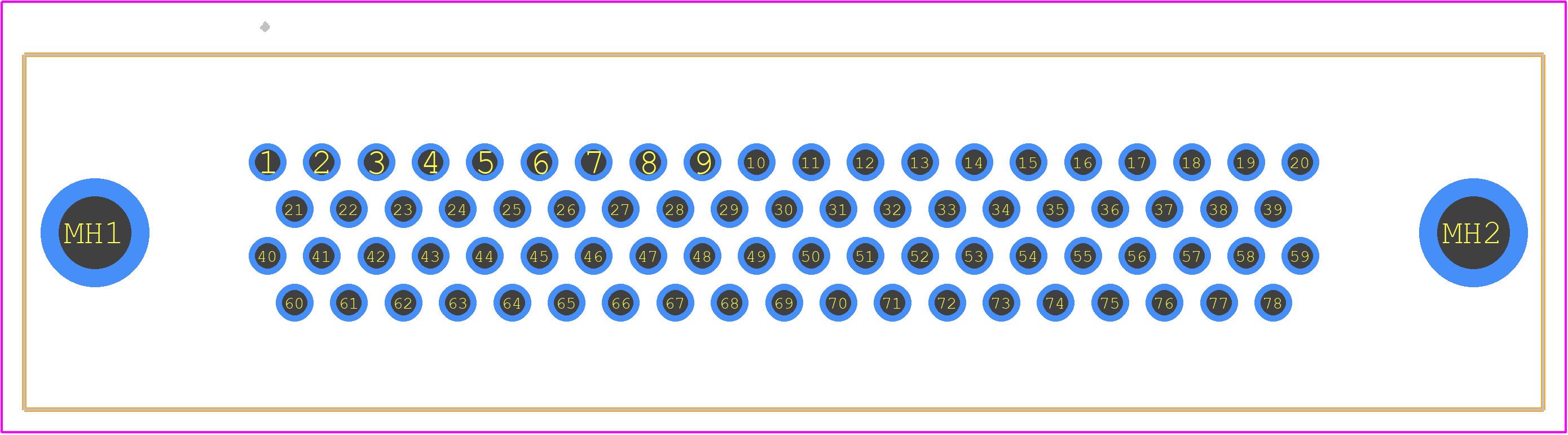

PCB Footprints
09565617712 - HARTING PCB footprint - Other - Other - 09565617712-1-2020
click to zoom
3D Models
09565617712 - HARTING - 3D model - Other - 09565617712-1-2020
click to zoom

09565617712 Details

  • Manufacturer Part Number:

    09565617712

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    78

  • UL Flammability Code:

    94V-0

09565617712 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09565617712 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09565617712 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09565617712 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity levels up to 95% RH.
  • Yes, the 09565617712 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
  • The maximum current rating for the 09565617712 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09565617712 Overview

Use the download button to access the 09565617712 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09565, or try a keyword search, such as D Type Connectors
