09641127800 - HARTING

Description: D-Sub Ferrite Filter 9pin female straight pcb mount, through hole (will be phased out 9/30/22)

Download 09641127800 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

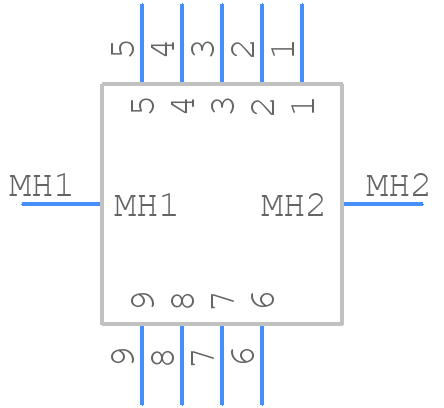

09641127800 - HARTING - PCB symbol
click to zoom
PCB Footprints

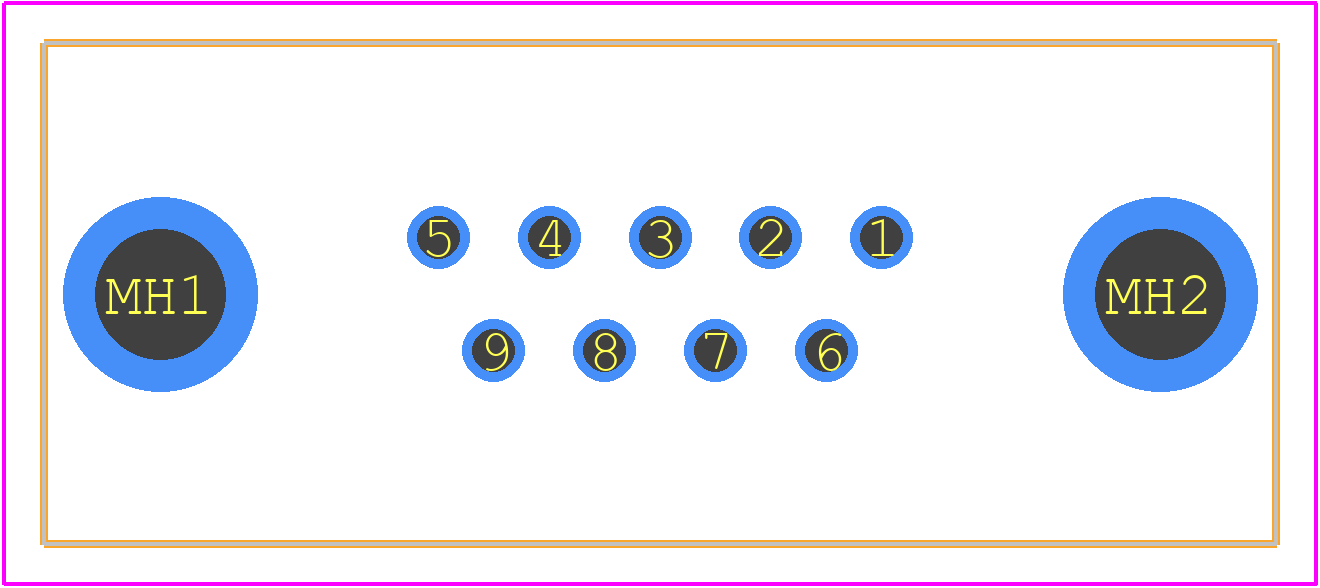

09641127800 - HARTING PCB footprint - Other - Other - 09641127800-2
click to zoom
3D Models
09641127800 - HARTING - 3D model - Other - 09641127800-2
click to zoom

09641127800 Details

  • Manufacturer Part Number:

    09641127800

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09641127800 Overview

Use the download button to access the 09641127800 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09641, or try a keyword search, such as D Type Connectors
