Part Image

09641147232 - HARTING

Description: D-Sub C-Filter 9pin female, angled pcb mount, w/ board locks, 4-40UNC Clinch Nut, 1000pf

Download 09641147232 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

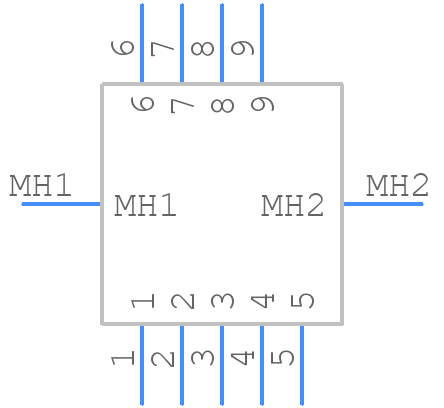

09641147232 - HARTING - PCB symbol
click to zoom
PCB Footprints

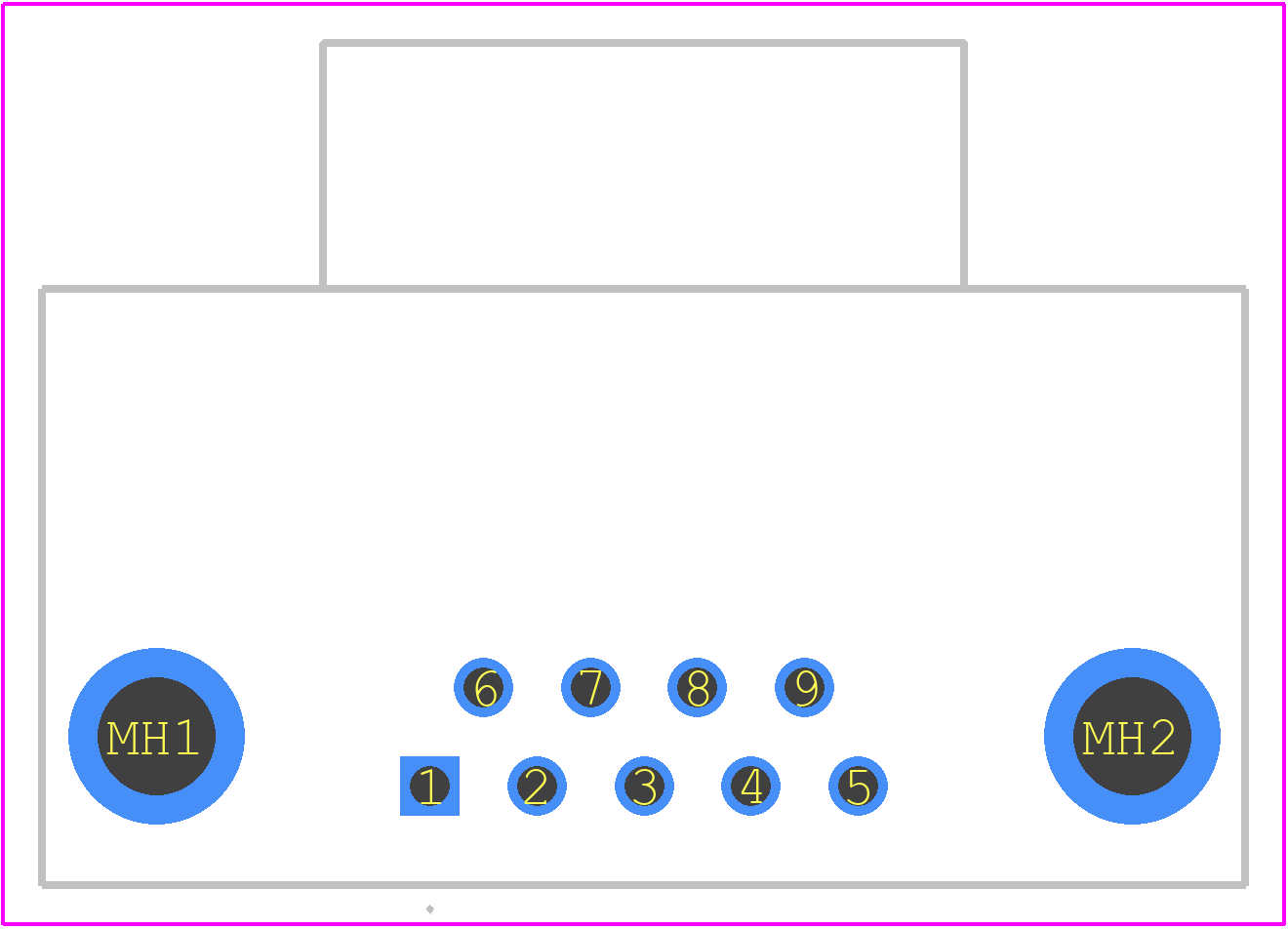

09641147232 - HARTING PCB footprint - Other - Other - 09641147232-2
click to zoom
3D Models
09641147232 - HARTING - 3D model - Other - 09641147232-2
click to zoom

09641147232 Details

  • Manufacturer Part Number:

    09641147232

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.7

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED PCT-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09641147232 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09641147232 connector is -40°C to 125°C, as per the HARTING datasheet.
  • Yes, the 09641147232 connector is designed to withstand high-vibration environments, making it suitable for applications in industrial, transportation, and other sectors where vibration is a concern.
  • The 09641147232 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's environmental specifications to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the 09641147232 connector is typically around 500-1000 mating cycles, depending on the specific application and environmental conditions. It's recommended to consult the datasheet and HARTING's specifications for more detailed information.
  • The 09641147232 connector is part of HARTING's Han-Modular series, which is designed to be modular and compatible with other Han-Modular products. However, it's essential to verify compatibility with specific products and configurations by consulting the datasheet and HARTING's documentation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09641147232 Overview

Use the download button to access the 09641147232 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09641, or try a keyword search, such as D Type Connectors
