09642127800 - HARTING

Description: D-Sub Ferrite Filter 15pin female straight pcb mount, through hole (will be phased out 9/30/22)

Download 09642127800 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

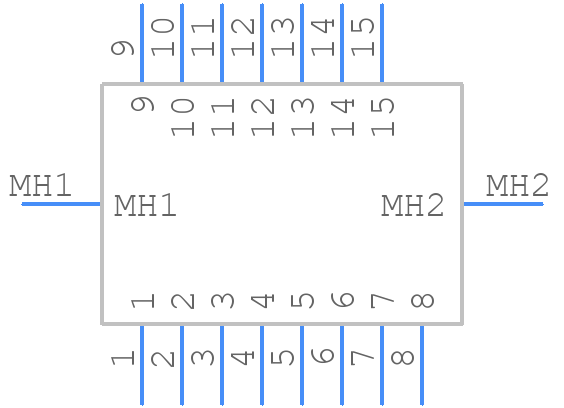

09642127800 - HARTING - PCB symbol
click to zoom
PCB Footprints

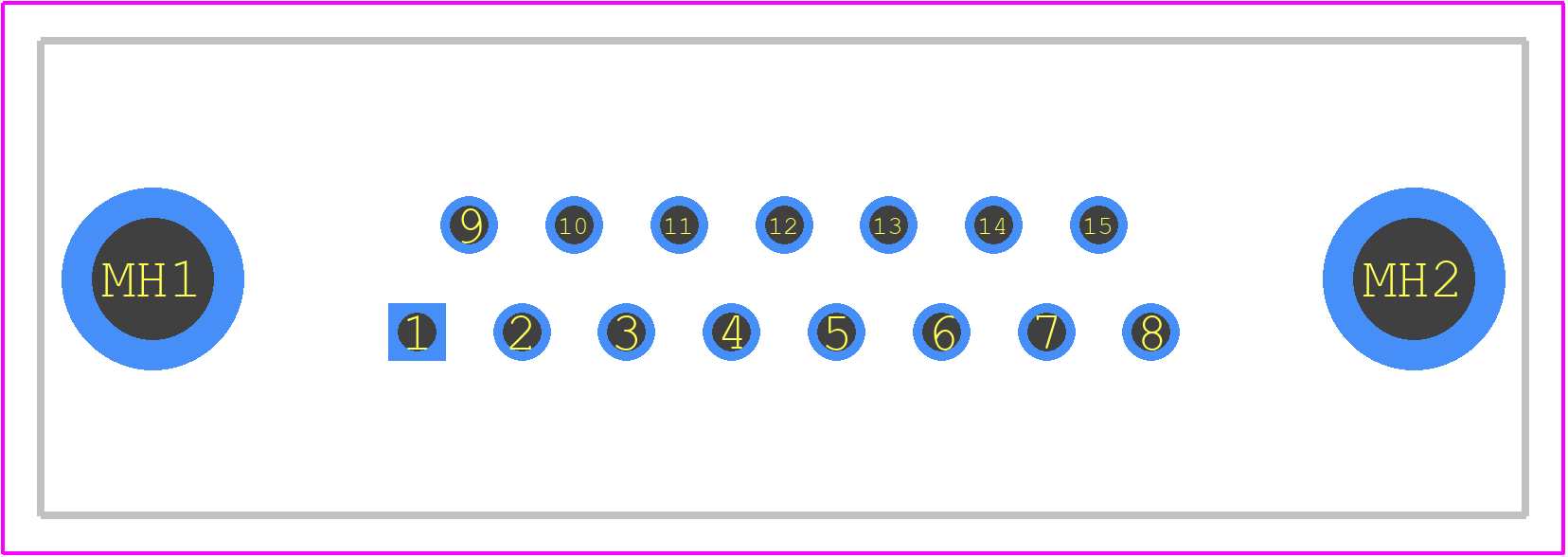

09642127800 - HARTING PCB footprint - Other - Other - 09642127800-1
click to zoom
3D Models
09642127800 - HARTING - 3D model - Other - 09642127800-1
click to zoom

09642127800 Details

  • Manufacturer Part Number:

    09642127800

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09642127800 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09642127800 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09642127800 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09642127800 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09642127800 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09642127800 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
