The operating temperature range of the 09642227235 connector is -40°C to 125°C, as per the IEC 61984 standard.
Yes, the 09642227235 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration, as per the IEC 61984 standard.
Yes, the 09642227235 connector is designed to operate in harsh environments, with an IP67 rating for protection against dust and water ingress, and resistance to various chemicals, such as oil, fuel, and cleaning agents.
The 09642227235 connector has a mating cycle life of at least 500 cycles, as per the IEC 61984 standard.
Yes, the 09642227235 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors, allowing for flexibility in design and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09642227235 Overview

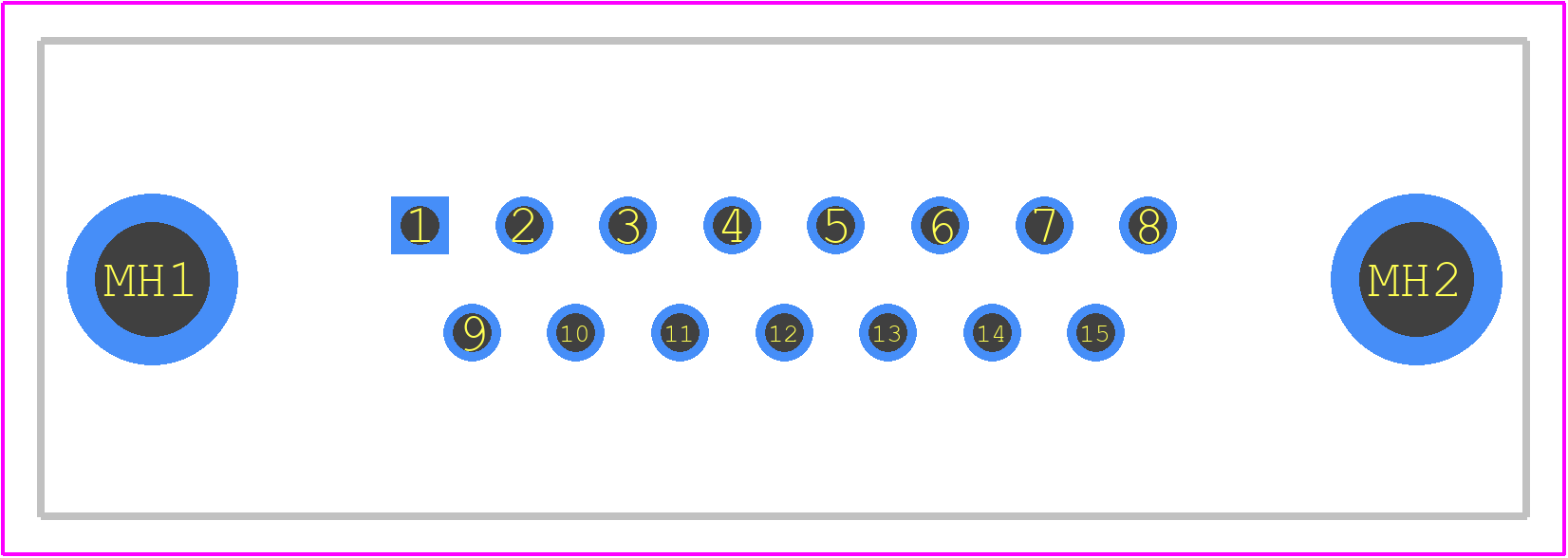

Use the download button to access the 09642227235 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09642,
or try a keyword search, such as D Type Connectors
