09642227800 - HARTING

Description: Harting D-Sub Filter Series 2.77mm Pitch 15 Way Straight Through Hole Mount Filtered PCB D-Sub Connector, Plug

Download 09642227800 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

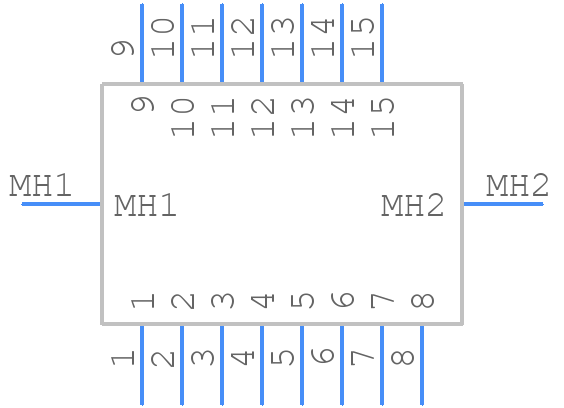

09642227800 - HARTING - PCB symbol
click to zoom
PCB Footprints

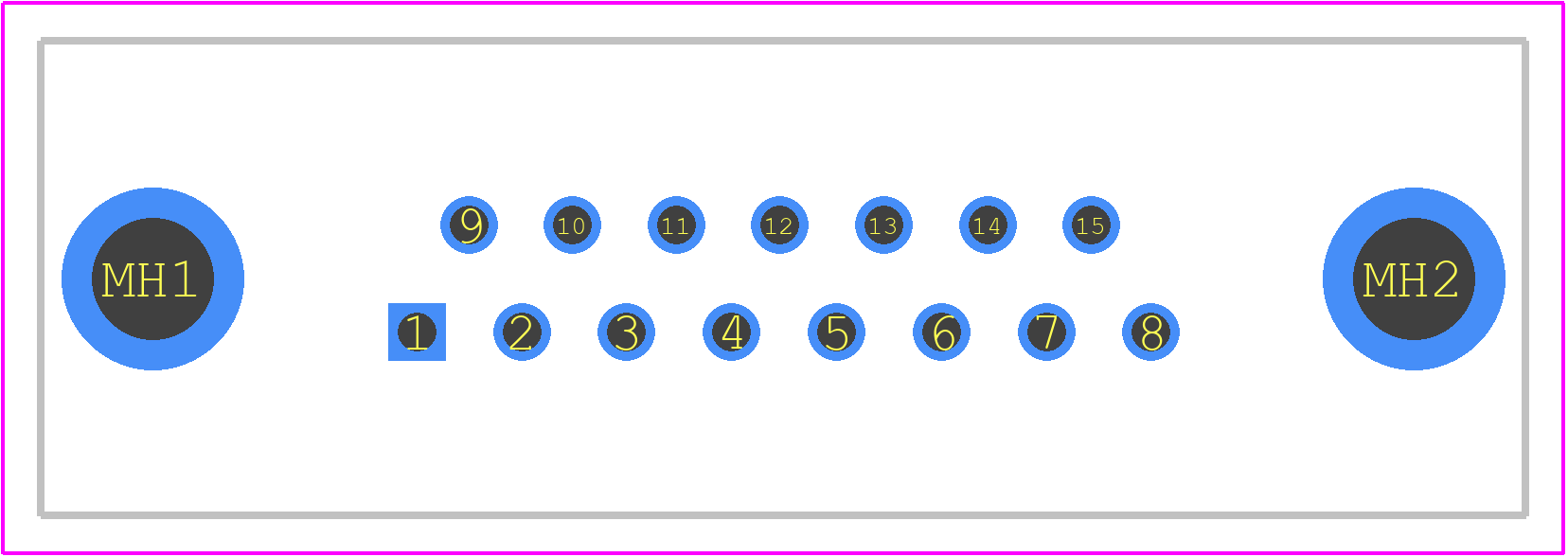

09642227800 - HARTING PCB footprint - Other - Other - 09642227800-2
click to zoom
3D Models
09642227800 - HARTING - 3D model - Other - 09642227800-2
click to zoom

09642227800 Details

  • Manufacturer Part Number:

    09642227800

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09642227800 Overview

Use the download button to access the 09642227800 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09642, or try a keyword search, such as D Type Connectors
